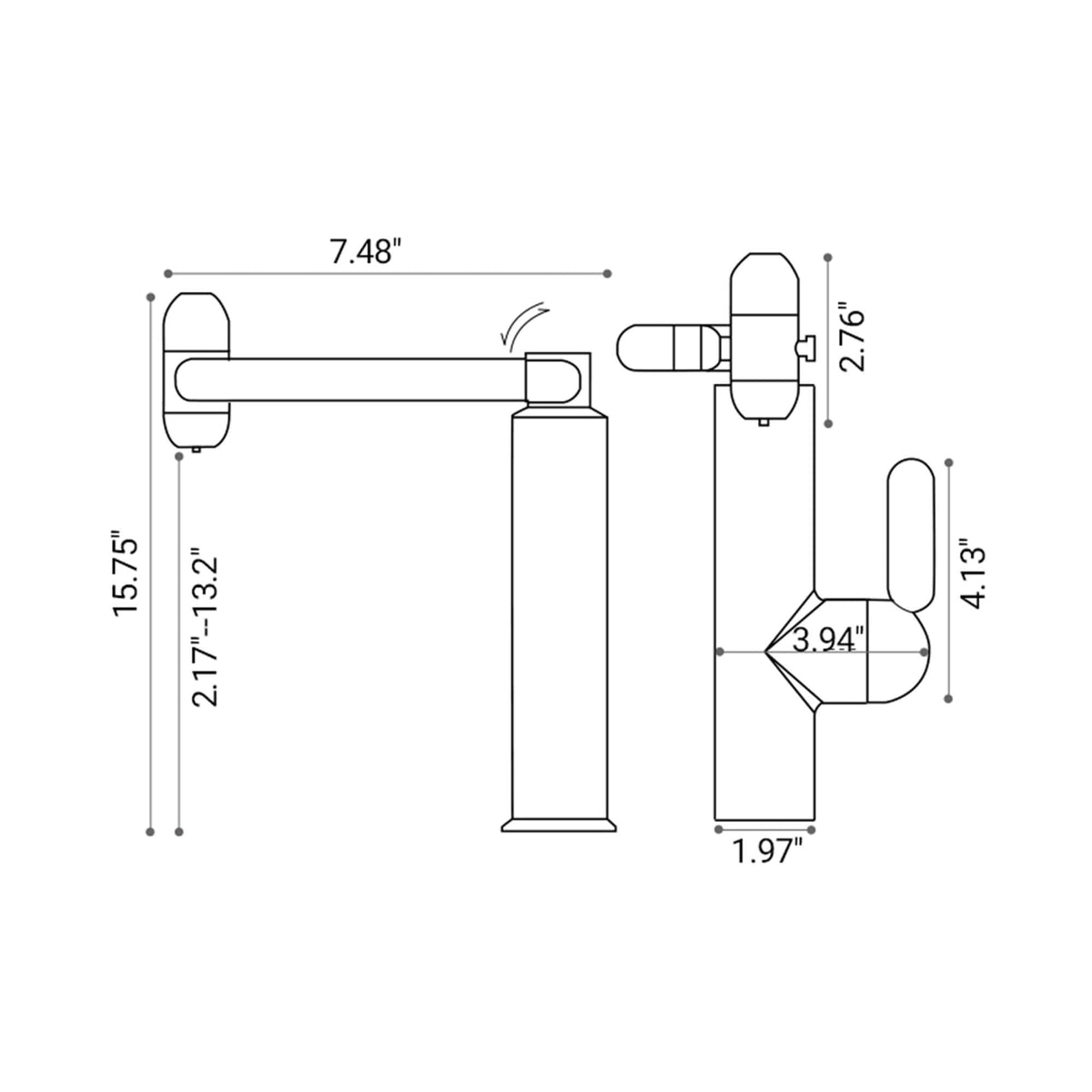

Dimensions & Fit
Overall Height
15.75" / 400 mm
Overall Faucet Length
7.48" / 190 mm
Spout Outlet Height Range
2.17"–13.20" / 55–335 mm

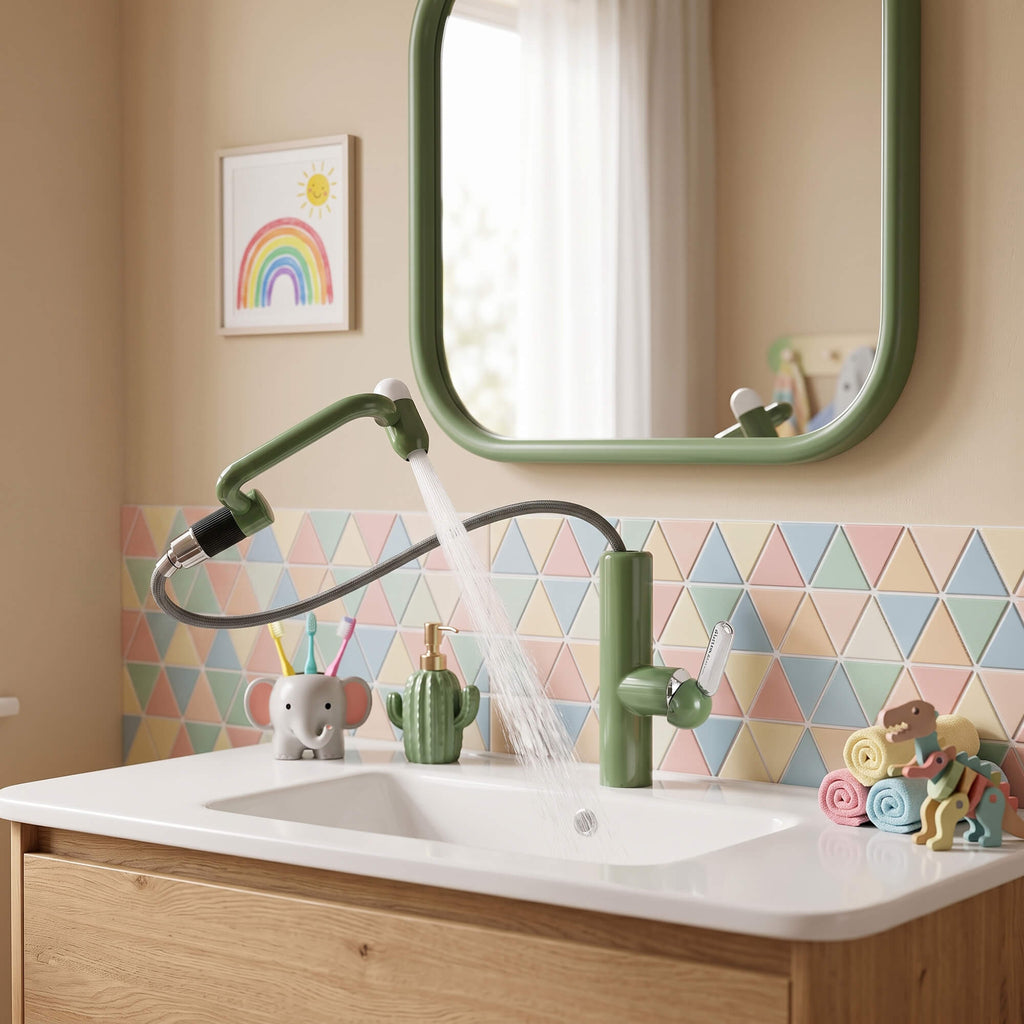

Pull-Out Range
11.81" / 30 cm
Water Supply Hose
Included (28" / 70 cm, pre-attached, 304 stainless steel, leak-resistant)

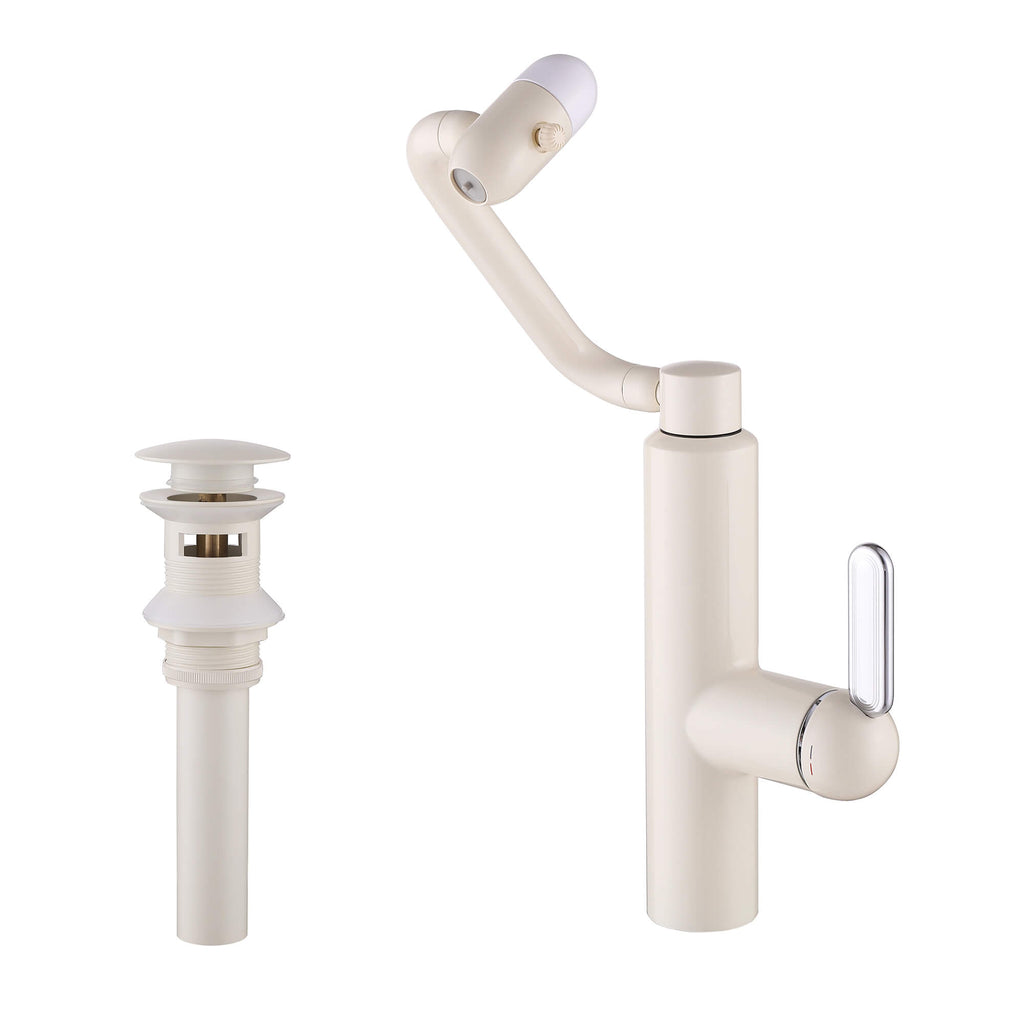

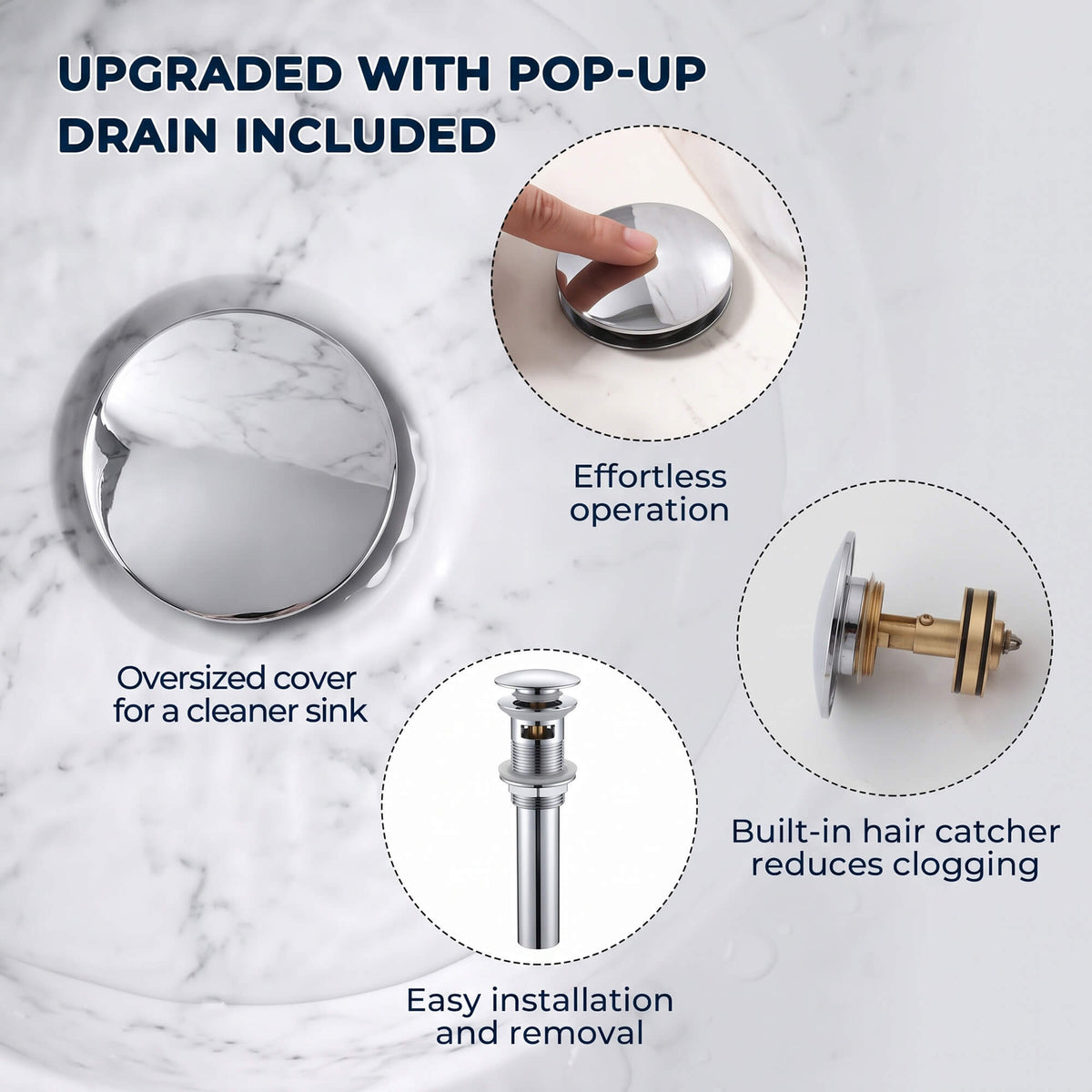

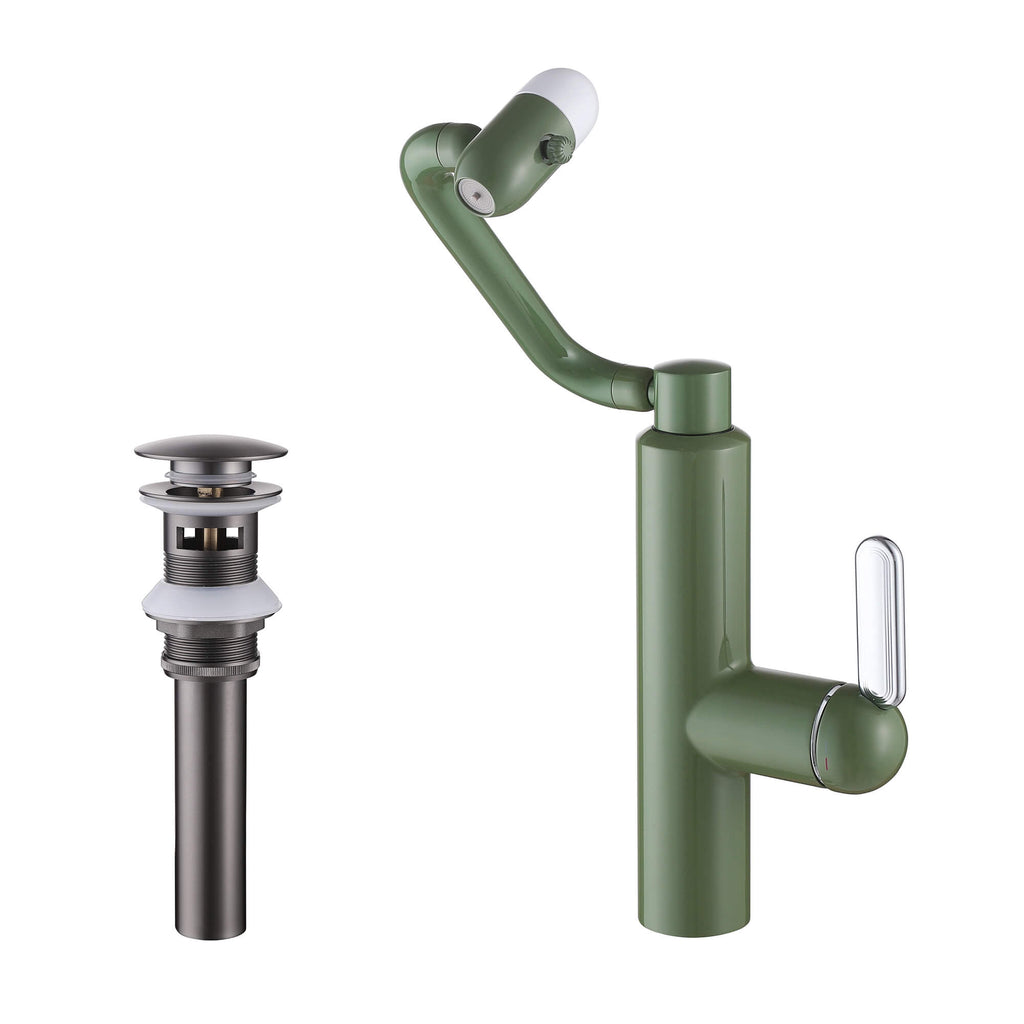

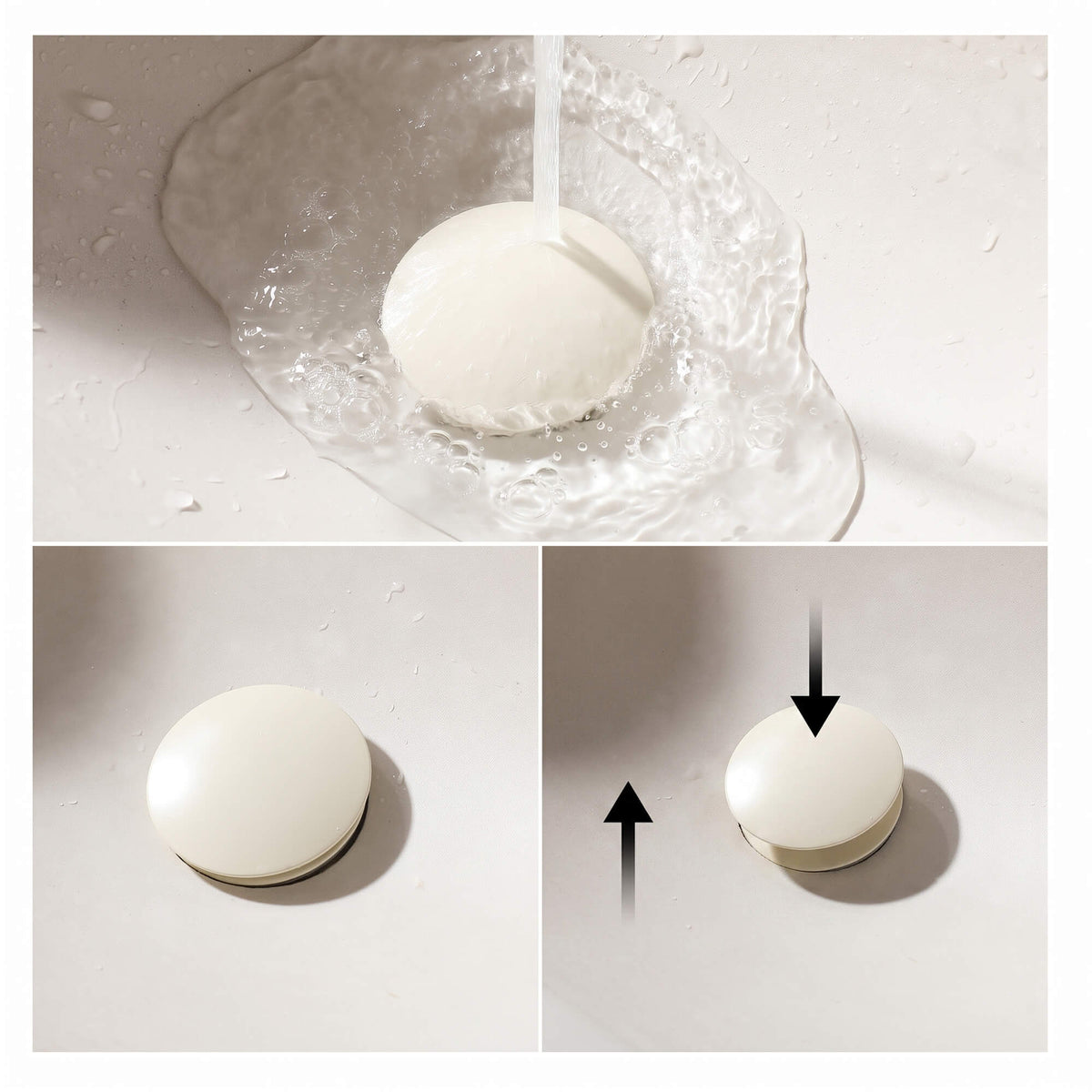

Drain Assembly
Included (Press-pop drain)
Installation Guides
1. Check Sink Compatibility: Ensure your sink or vanity top is configured for a deck-mounted, single-hole installation.
2. Measure for Clearance: Verify the spout height, reach, and handle clearance to ensure unobstructed movement before mounting.
3. Proper Basin Alignment:Position the spout so it directs the water stream cleanly into the sink basin to prevent splash-back during everyday use.
4. Supply Line Preparation: Shut off the hot and cold water stops completely, then briefly flush the supply lines to prevent sediment from clogging the cartridge or aerator.
5. Final Inspection: Complete the assembly per the step-by-step instruction manual. Gradually reopen the water supply valves and inspect all joints, handles, valves, and hoses for any signs of leakage.
Installation Manual
Review the complete installation requirements and instructions before installation.
Download the Installation Manual (PDF)
