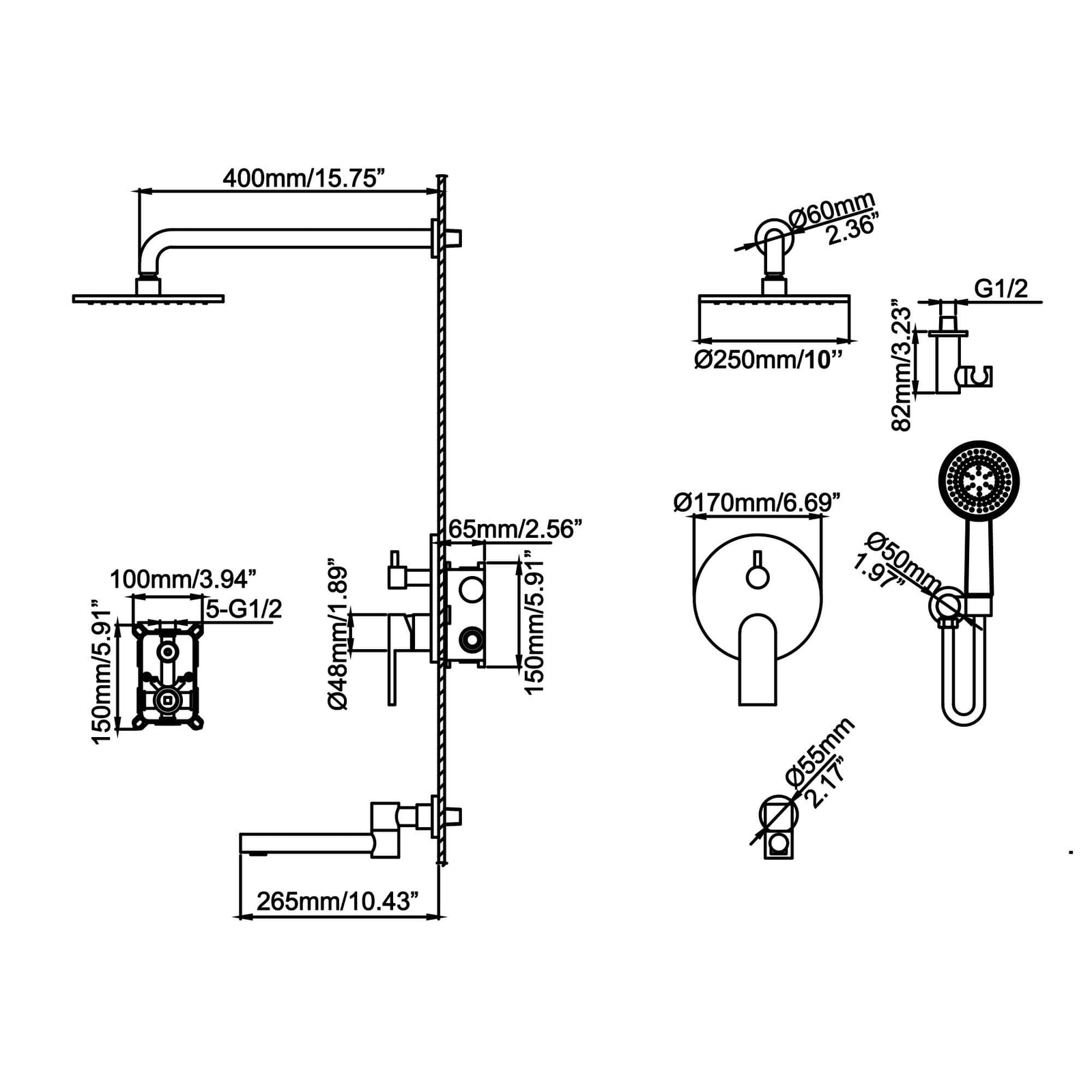

Technical Specifications:

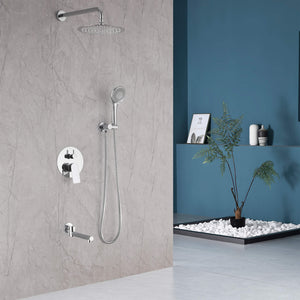

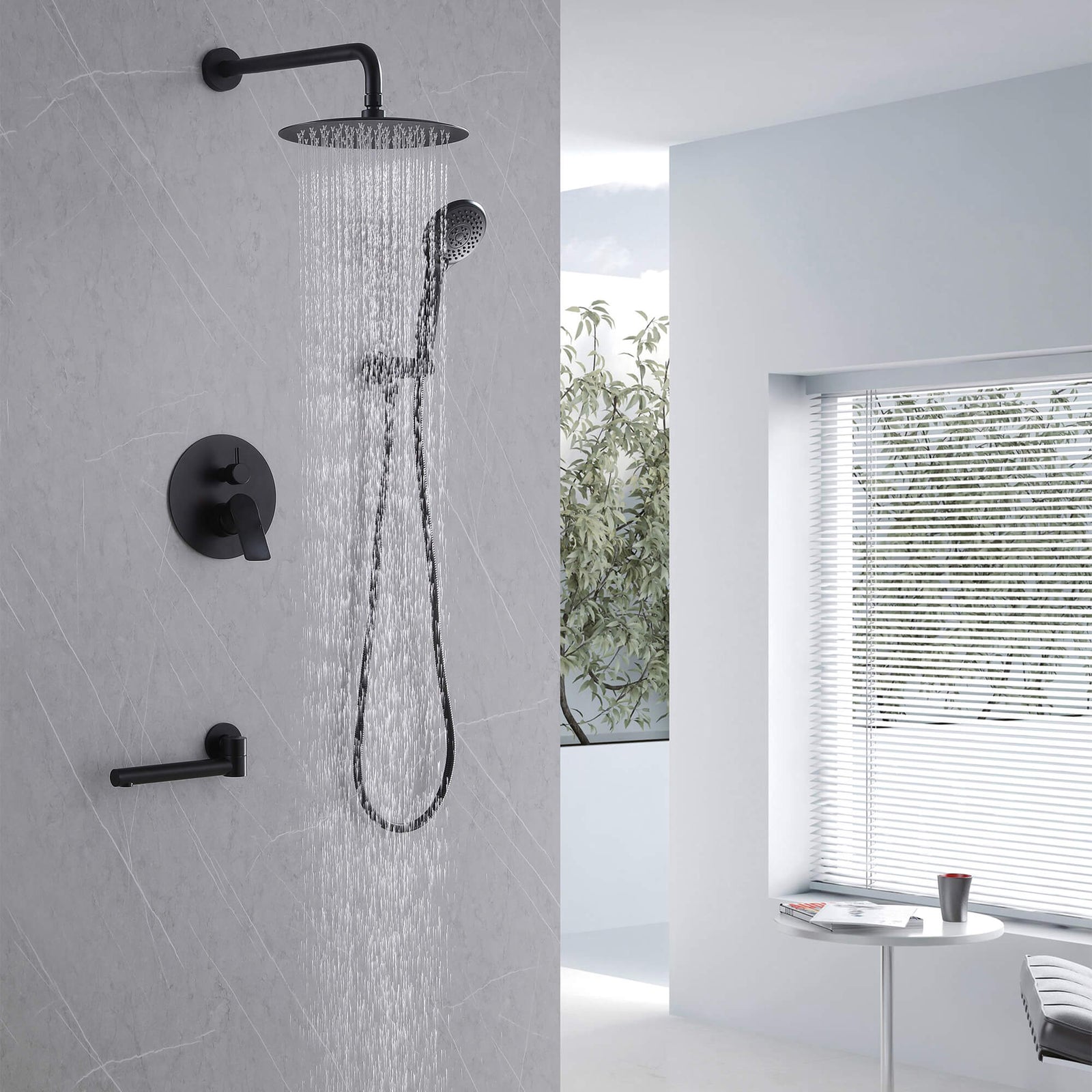

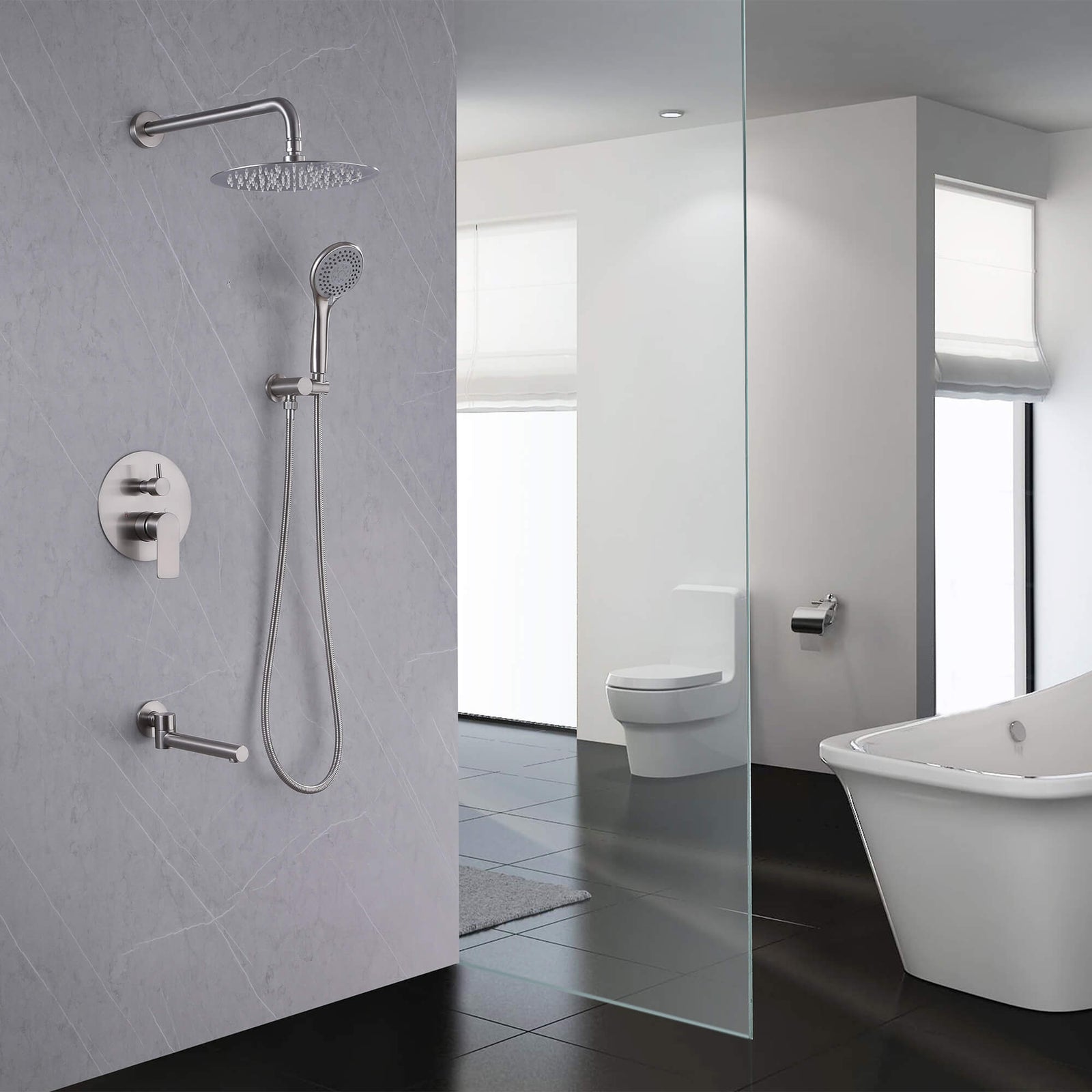

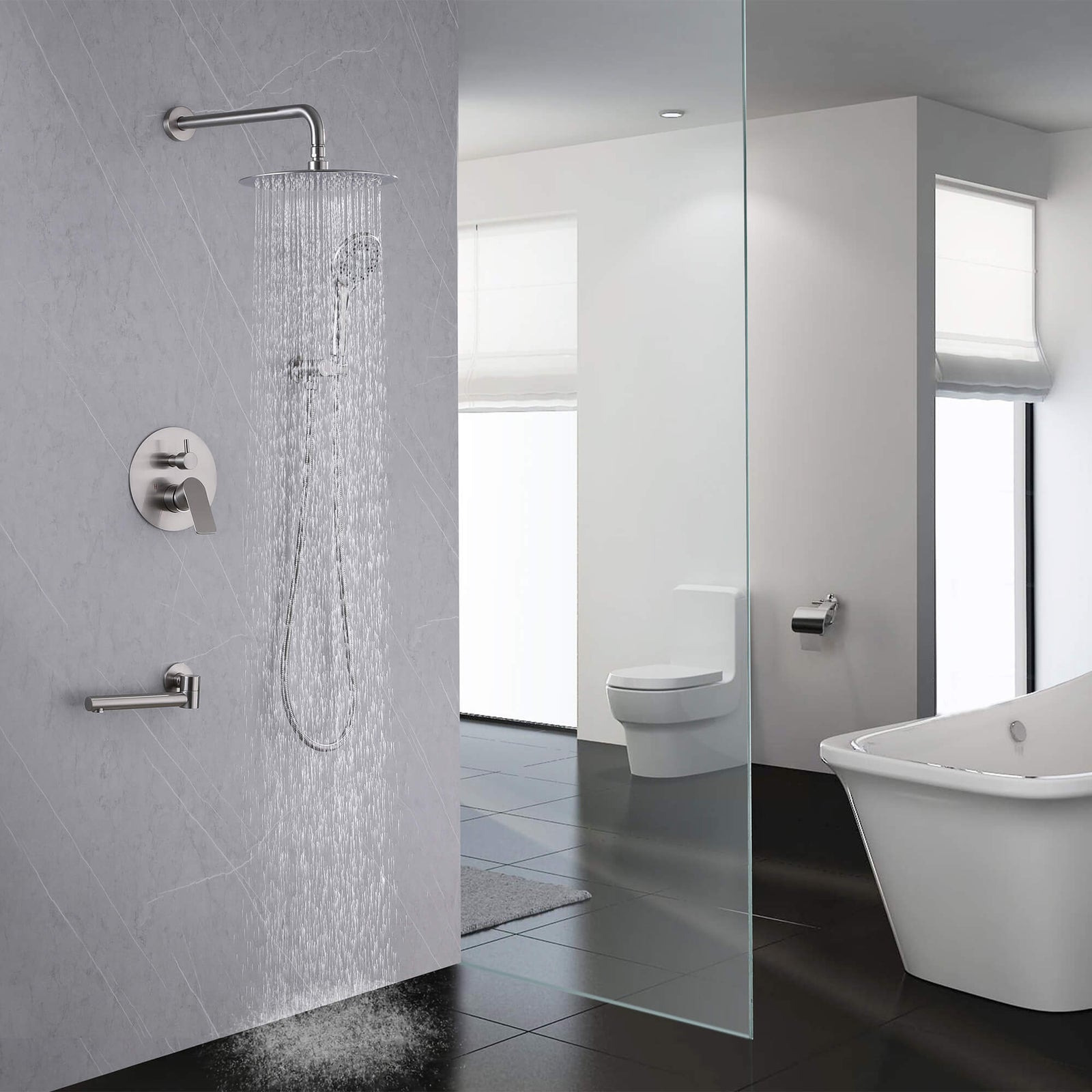

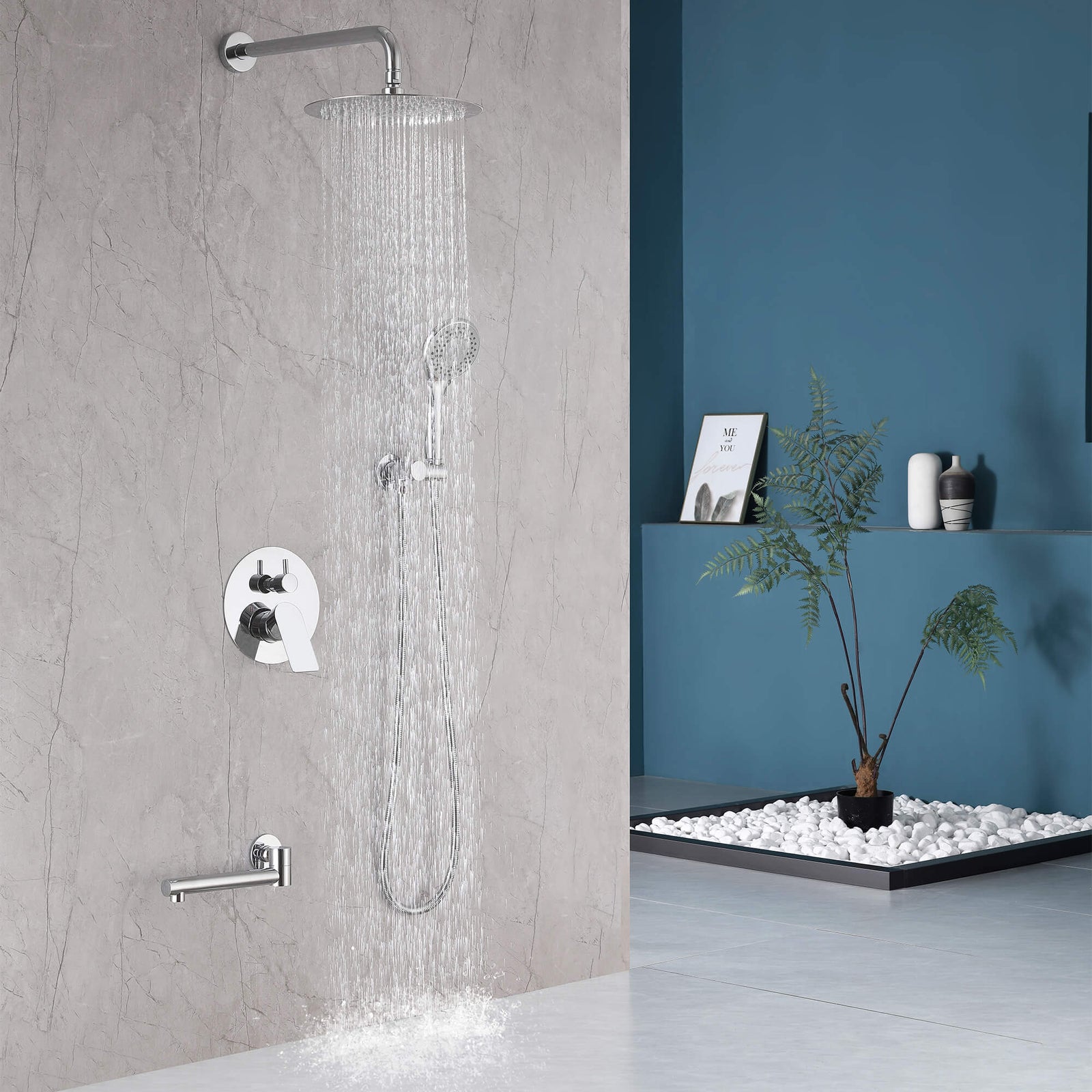

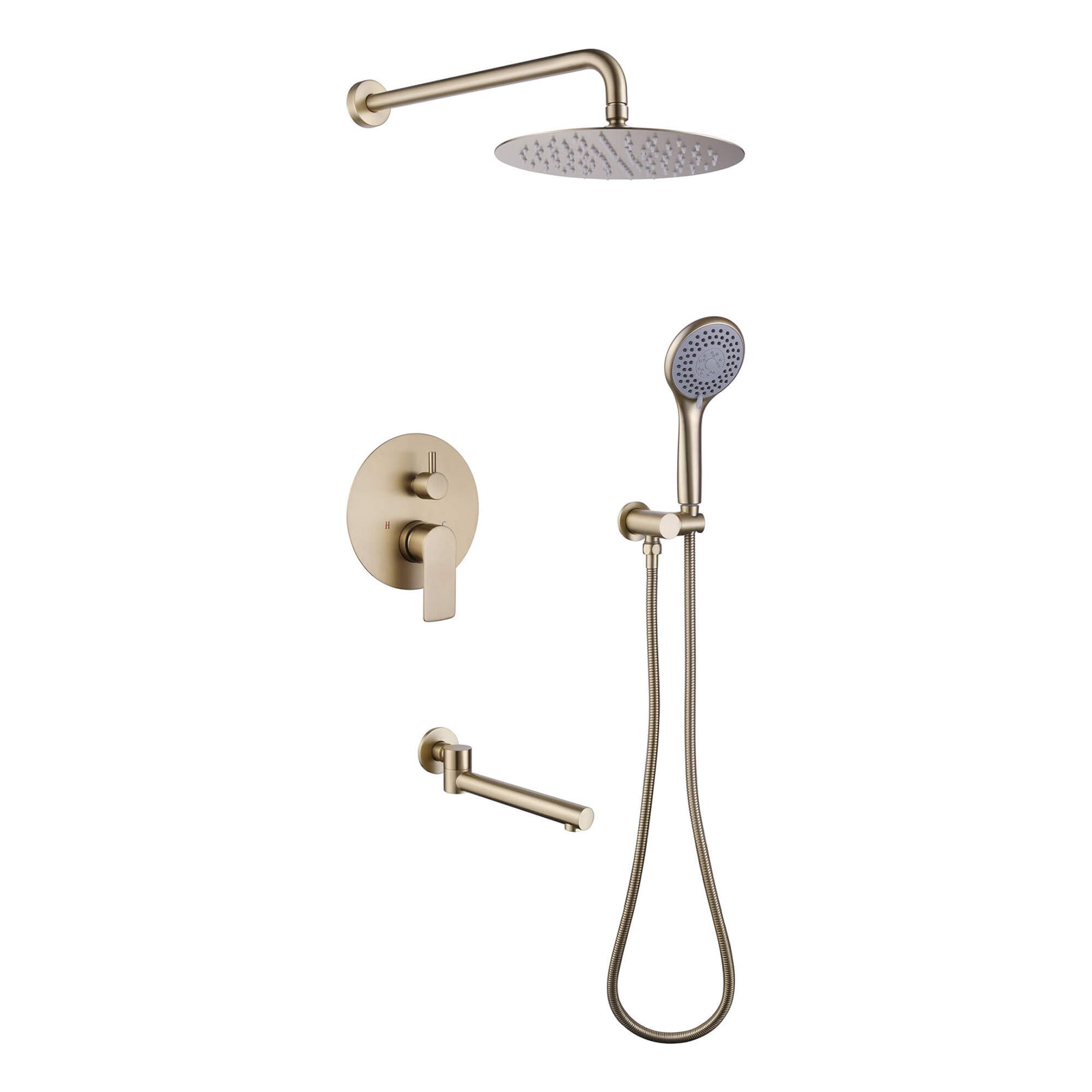

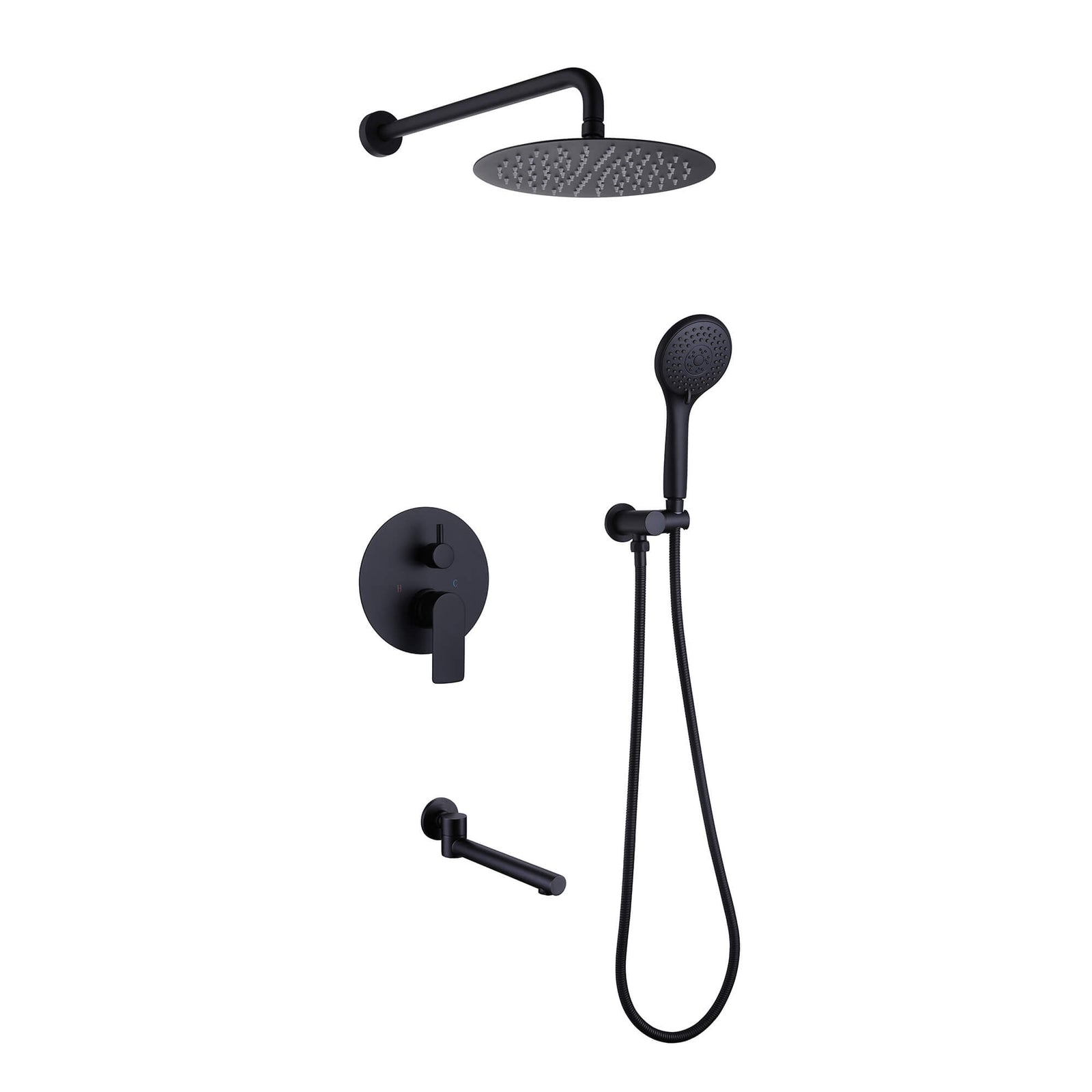

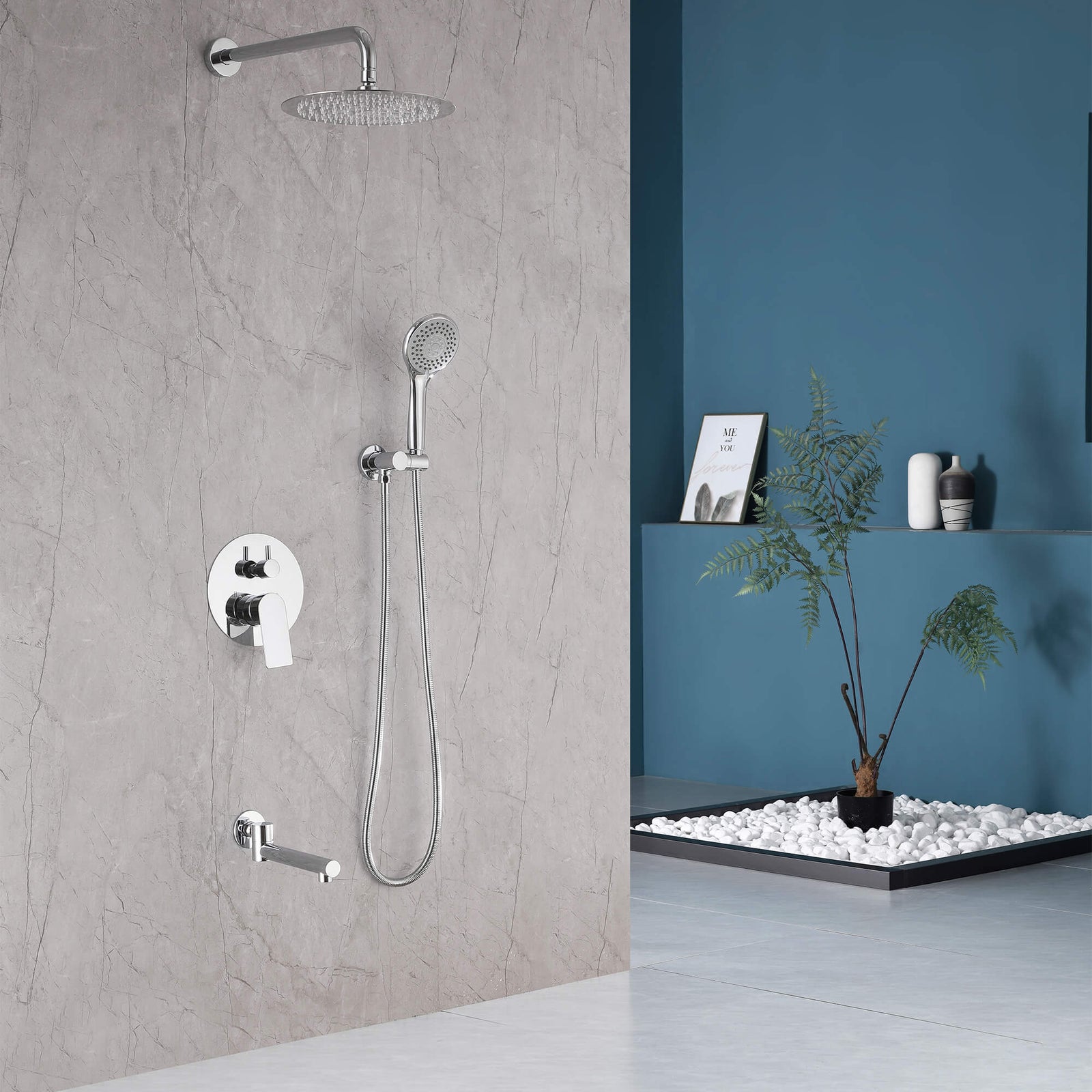

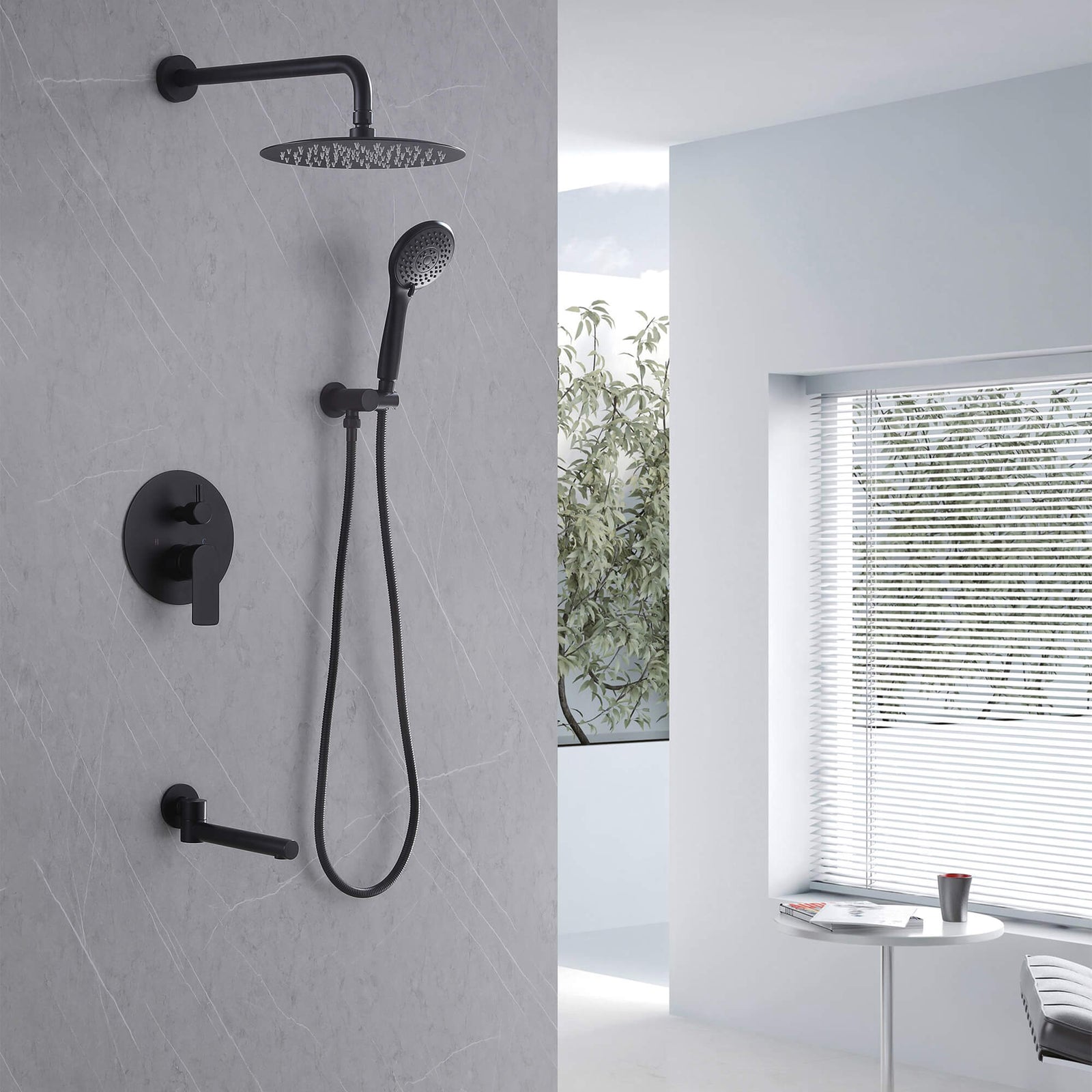

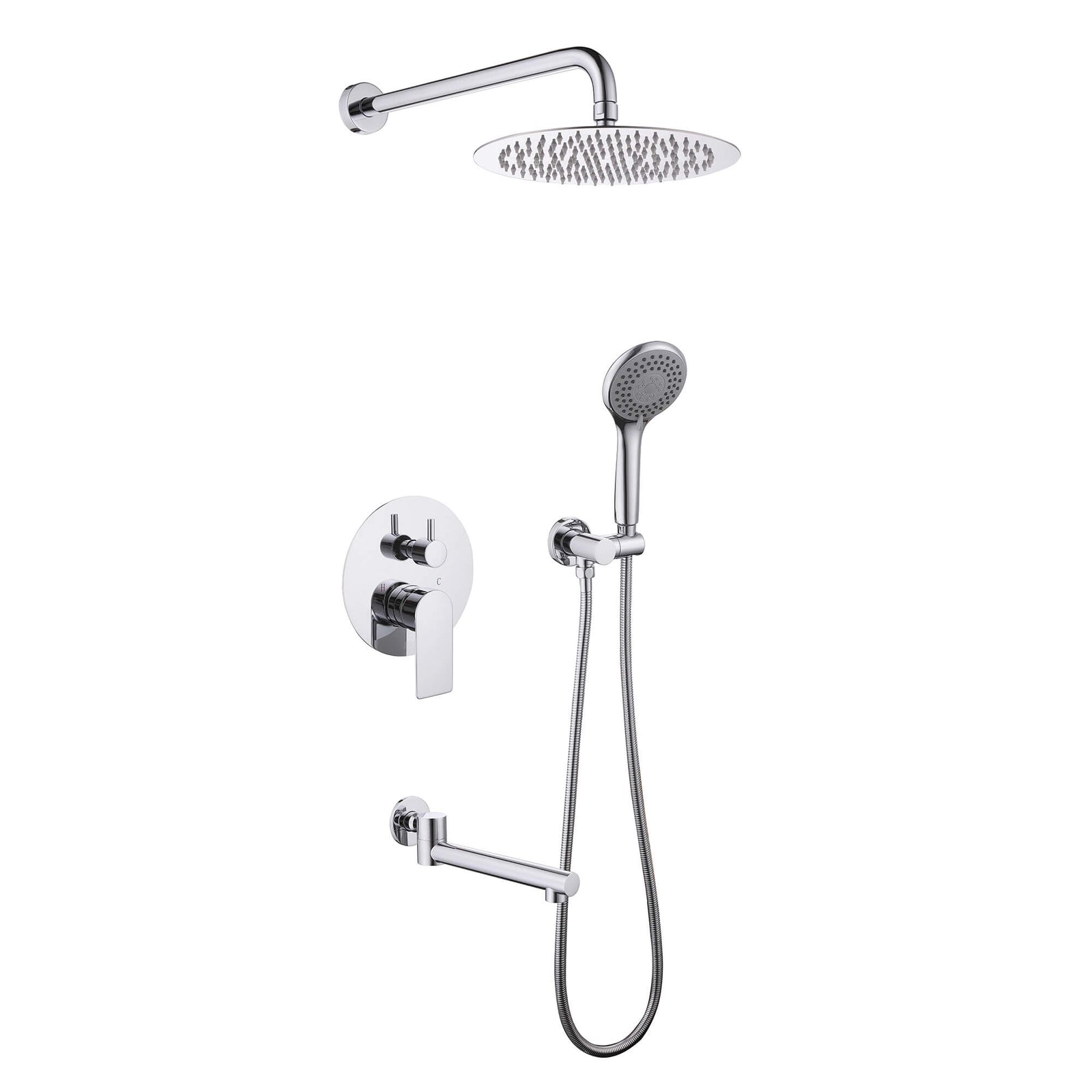

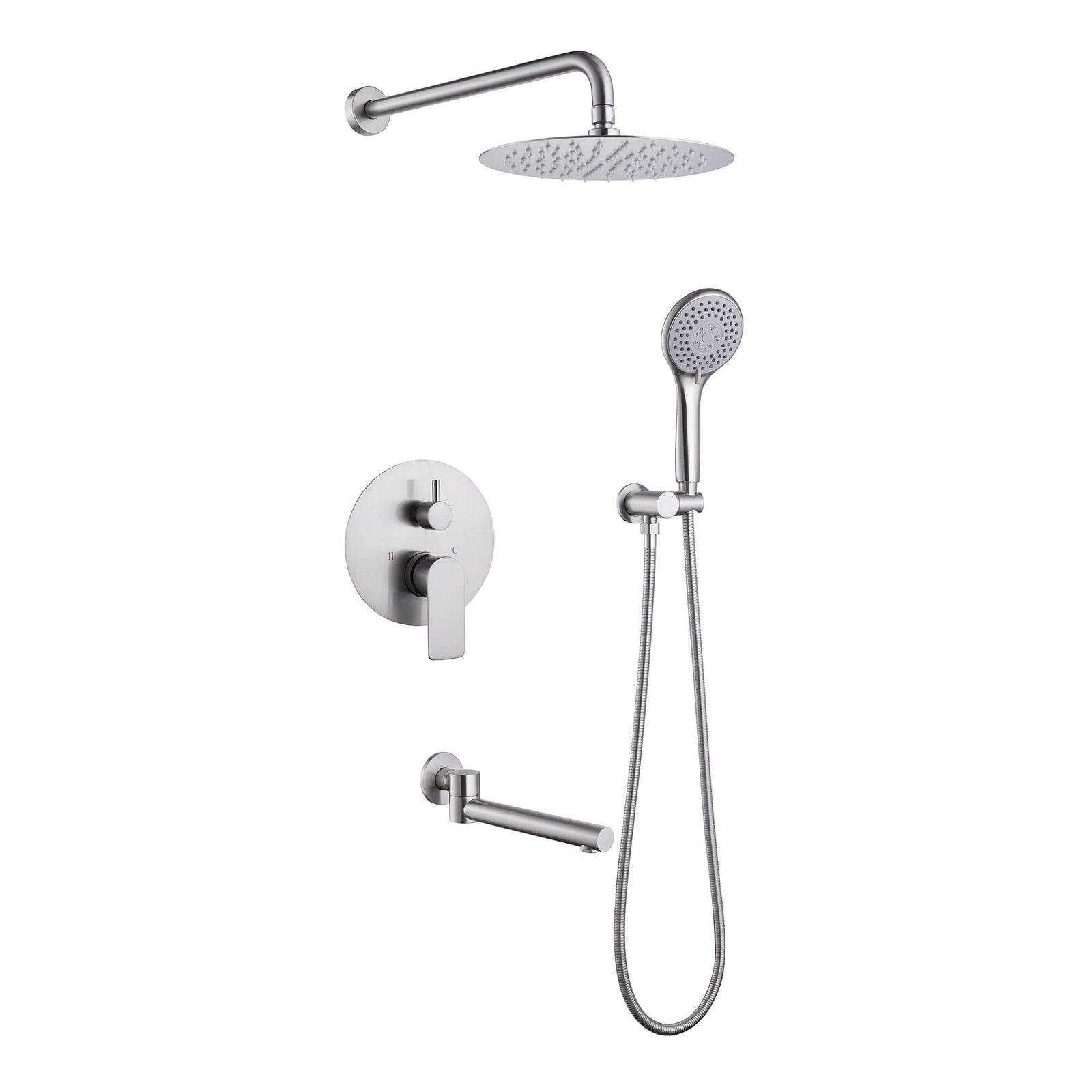

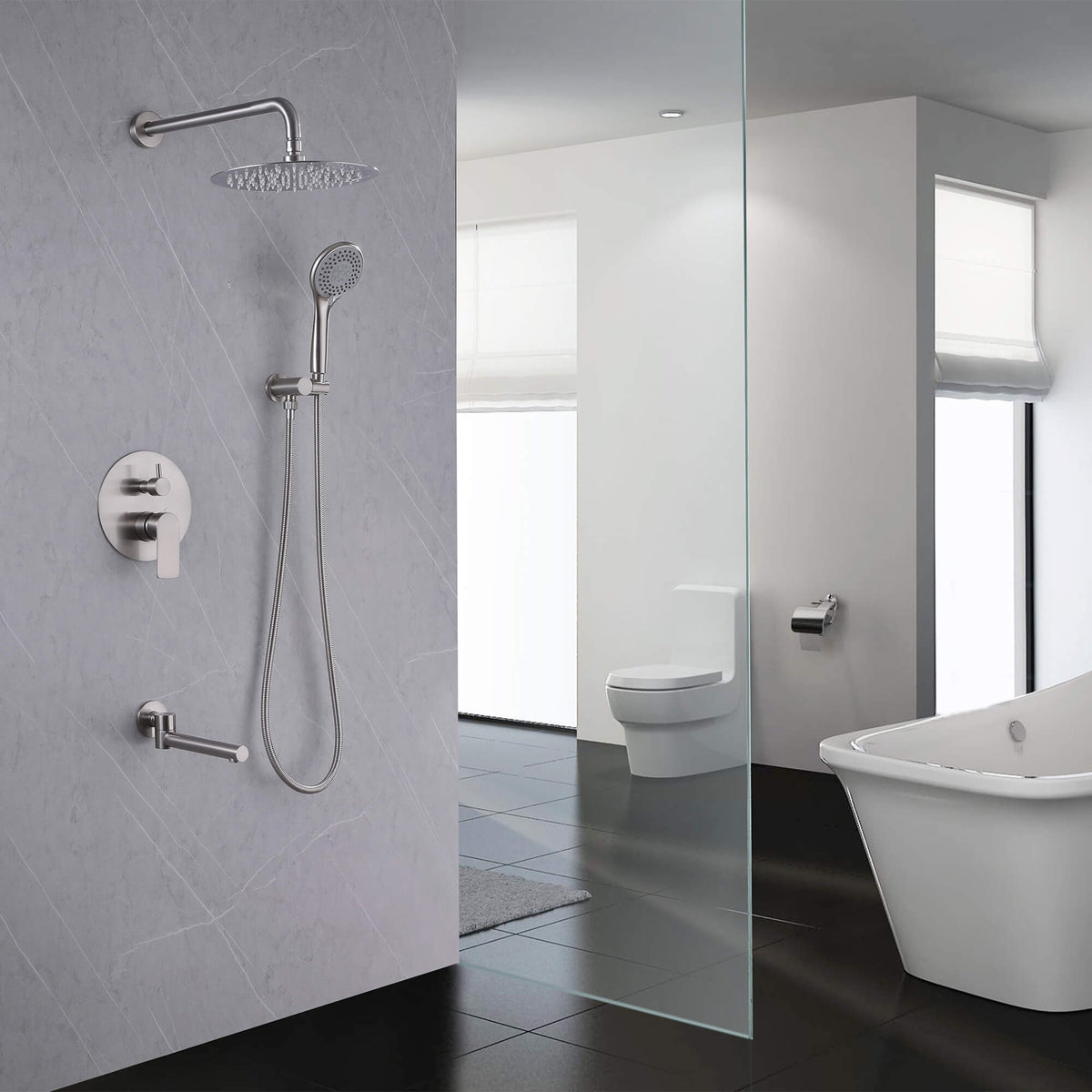

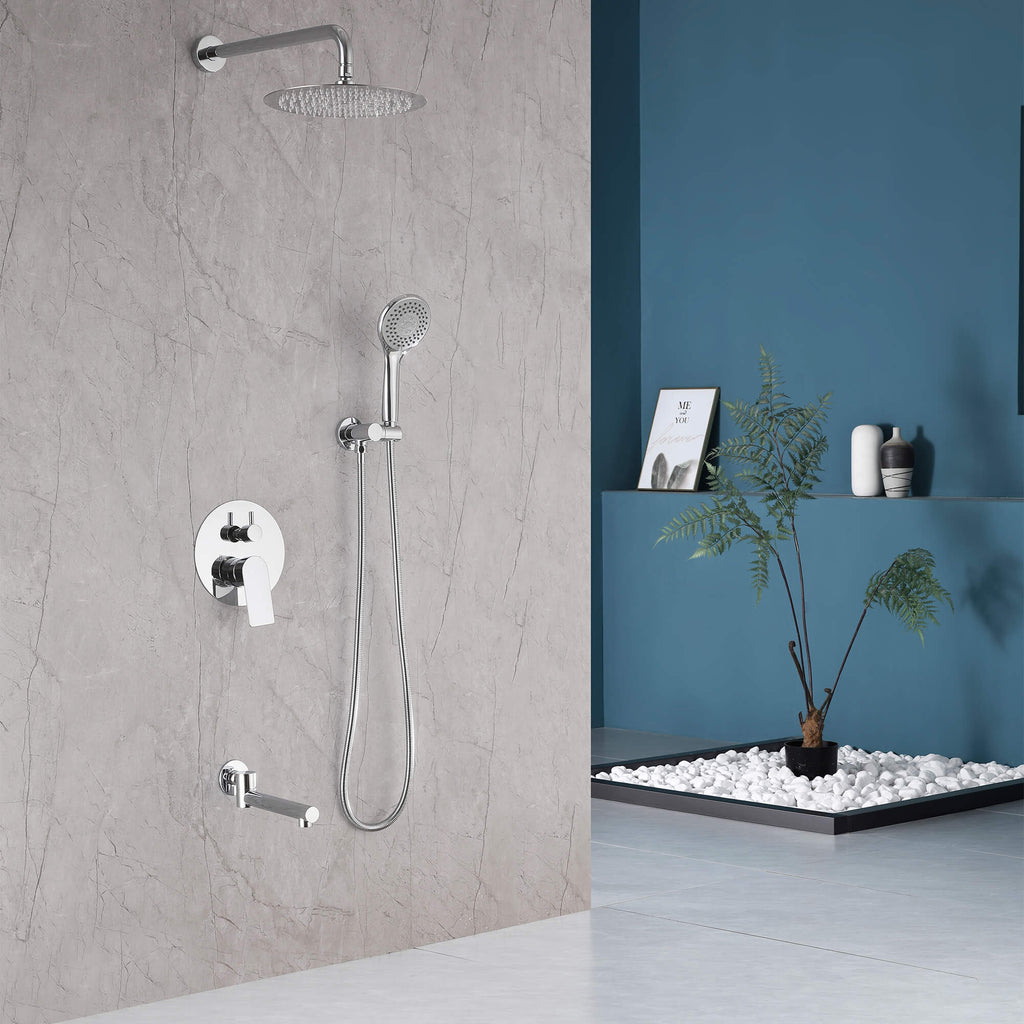

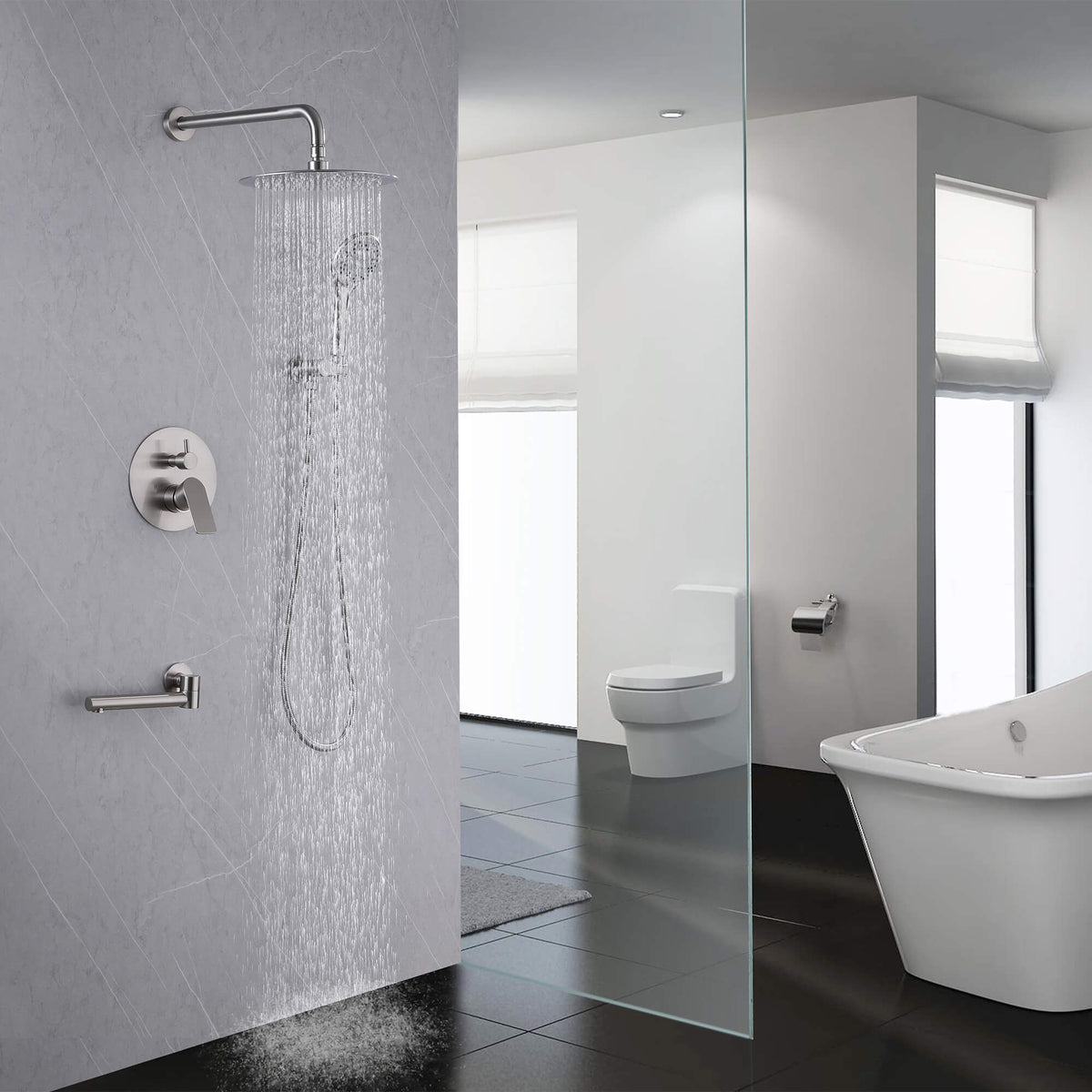

Concealed Architectural Luxury: The Ultimate 3-Way In-Wall Hydrotherapy Experience

True bathroom sophistication relies on streamlining complex mechanics into pure geometric forms. This premium concealed 3-function shower system elevates your daily routine by tucking all complex water conduits completely behind the wall, highlighting a razor-thin round rain canopy, a matching clean-lined hand wand, and a clever space-saving fold-away bathtub spout. Anchored by an indestructible solid brass rough-in core and dressed in a stunning master finish shield, this system strips away traditional hardware clutter. Tailored precisely for high-end residential overhauls, custom modern estates, and luxury hospitality designs, it brings an uncompromising boutique spa experience directly to your home.

Key Product Features

• 3-Function Comprehensive Bathing Framework
  Maximize your custom bathroom layout with a fully integrated, multi-output layout engineered to effortlessly drive an overhead rain shower, a targeted handheld wand, and a dedicated high-capacity tub filler.


• Premium Long-Life Finish Engineering
  Display a breathtaking light-luxury aesthetic on your wall with a high-purity surface coat that heavily repels oily fingerprints, water spots, and daily soap scum for effortless cleaning.


• Heavy-Duty One-Piece Solid Brass Valve Core
  Establish an uncompromised structural baseline with an integrated gravity-cast solid brass rough-in body machined to eradicate internal sand holes, ensuring lifetime leak-proof safety under intense thermal cycling.


• Anti-Backflow Dual Check Valve Protection
  Safeguard your household water supply with built-in plumbing check valves that block unexpected pressure drops and prevent cold/hot water cross-flow, pinning your chosen shower temperature safely in place.

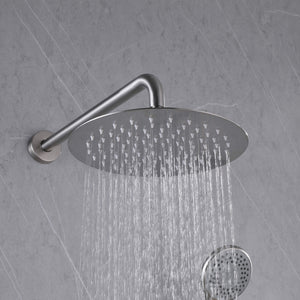

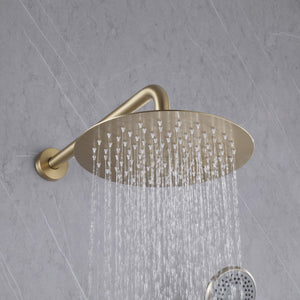

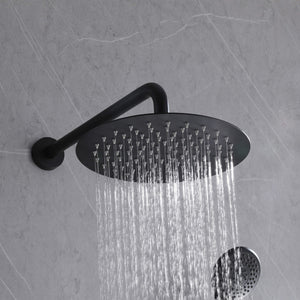

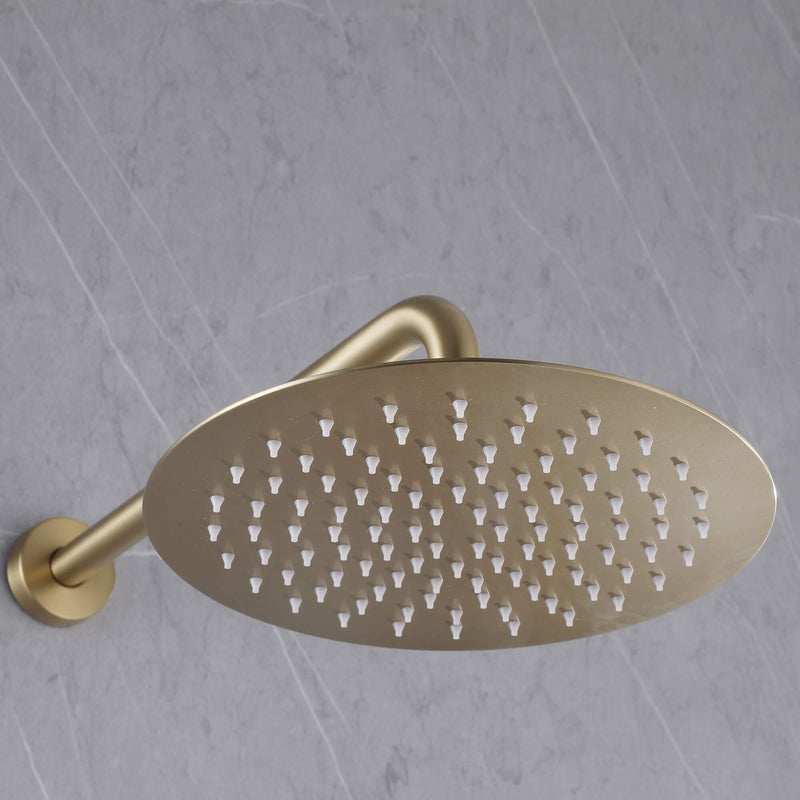

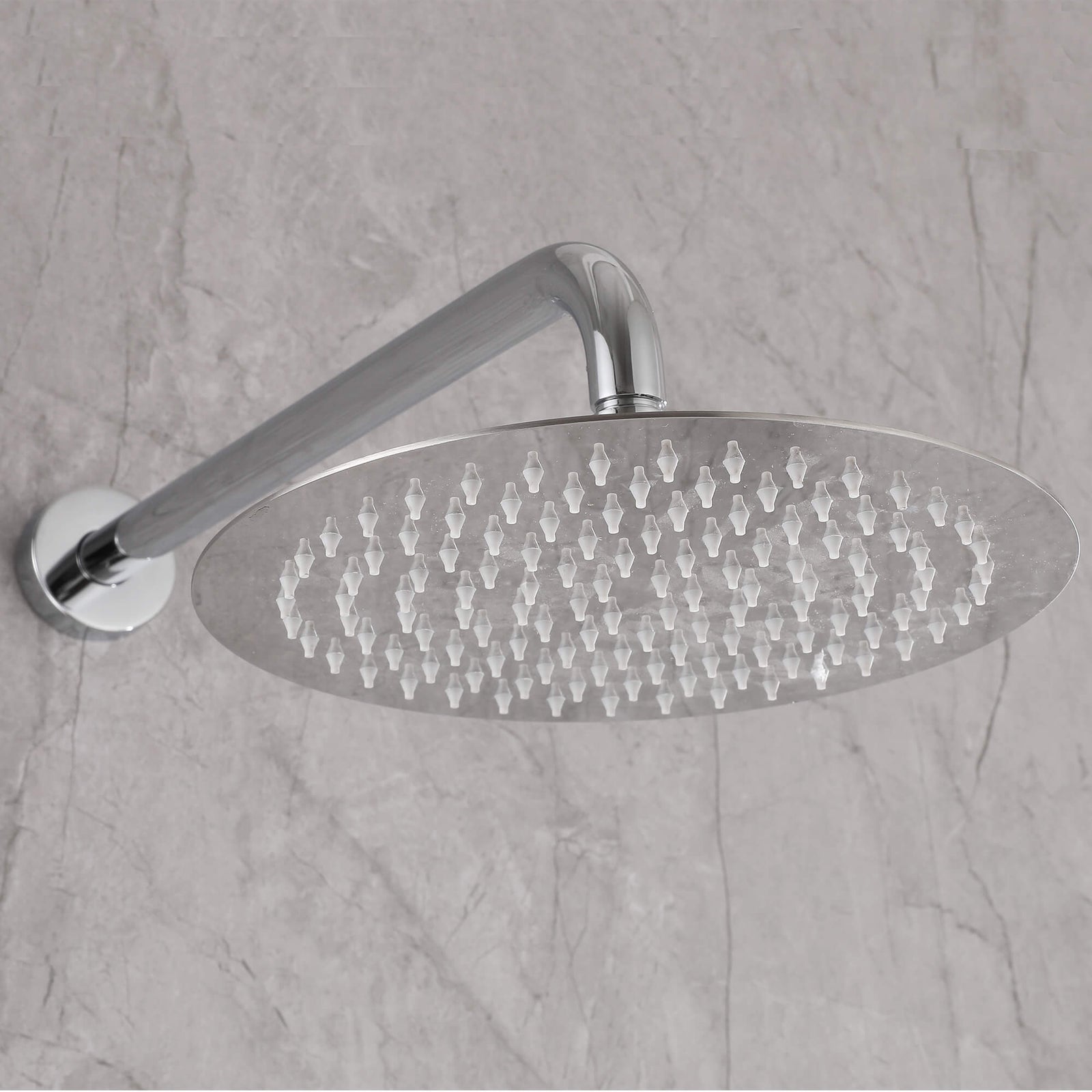

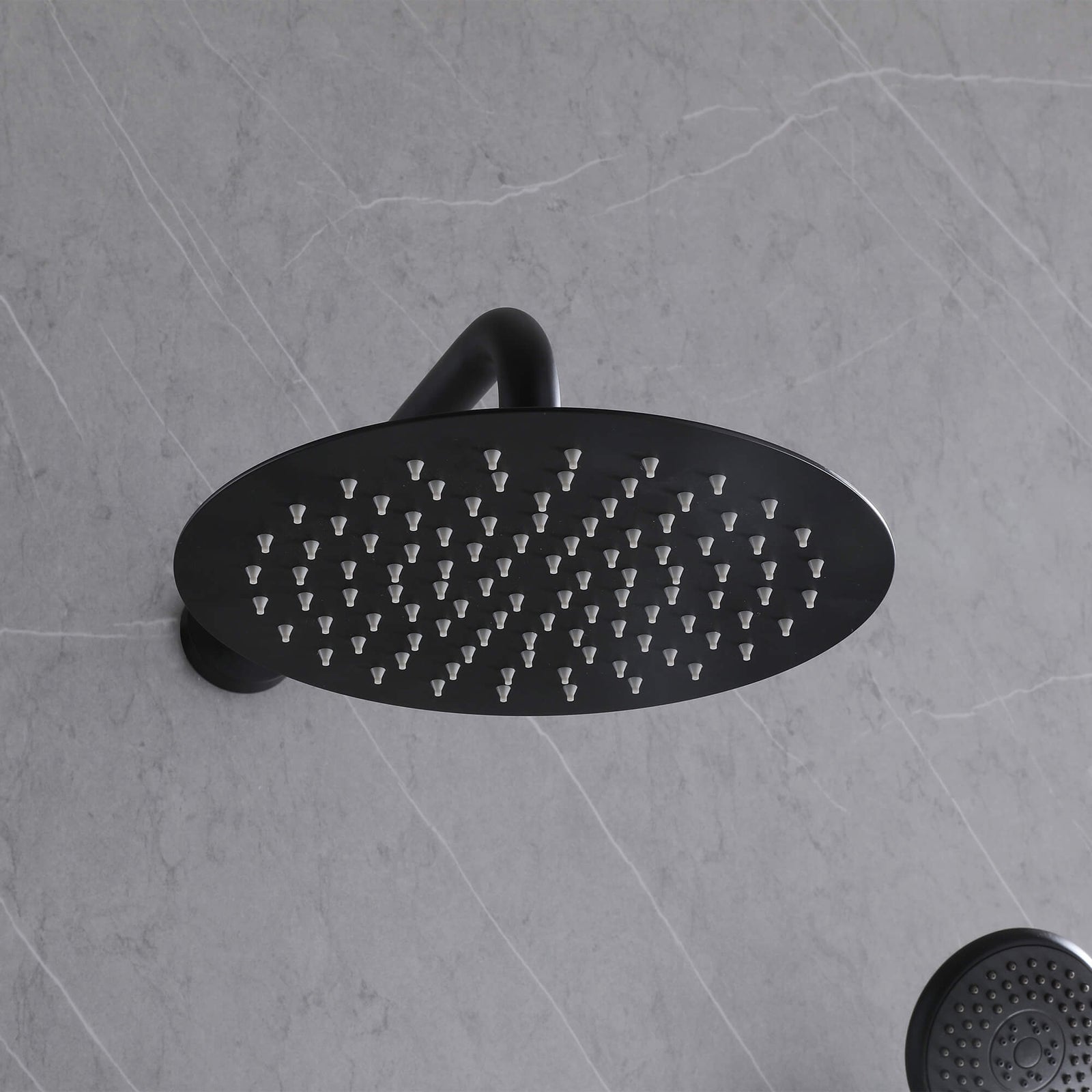

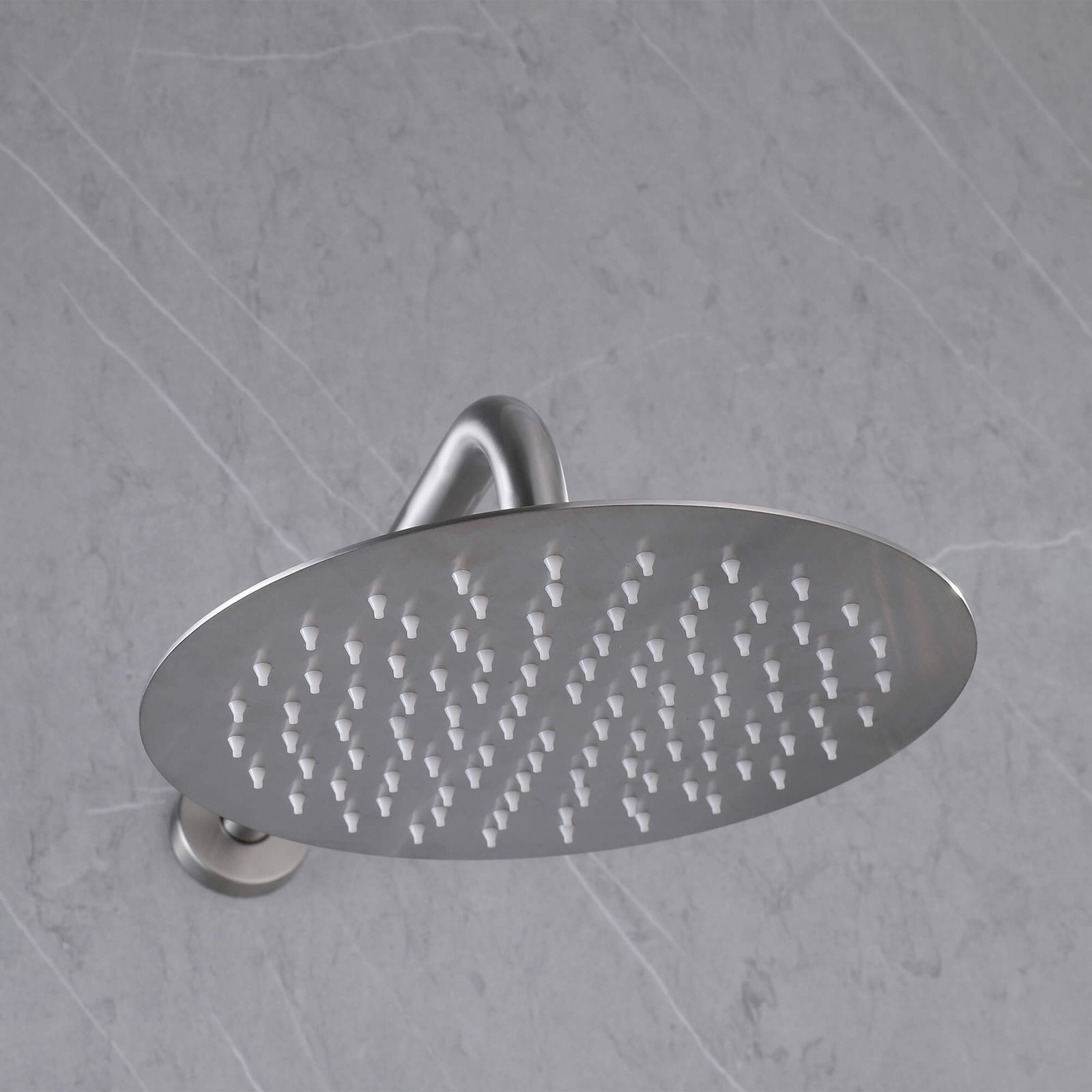

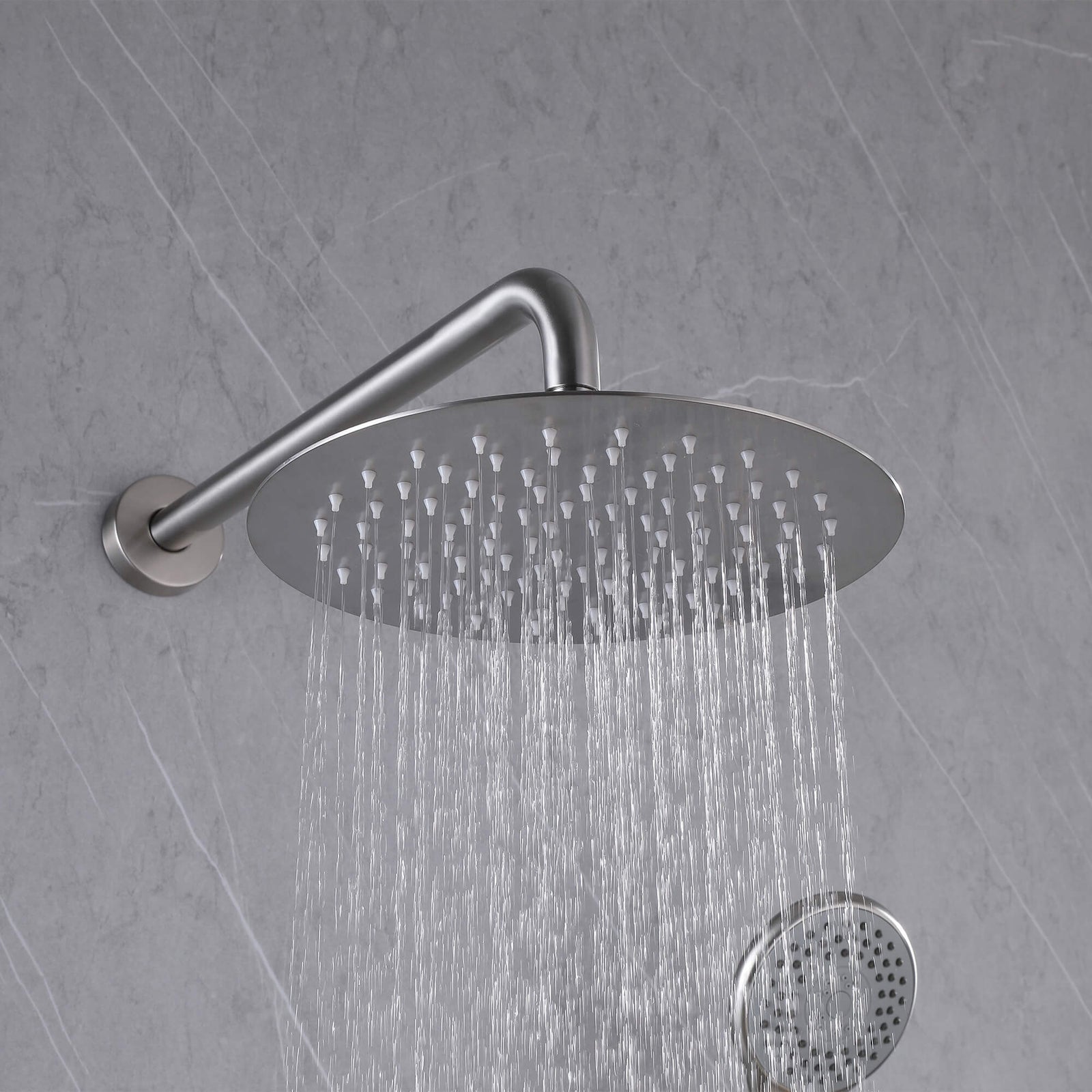

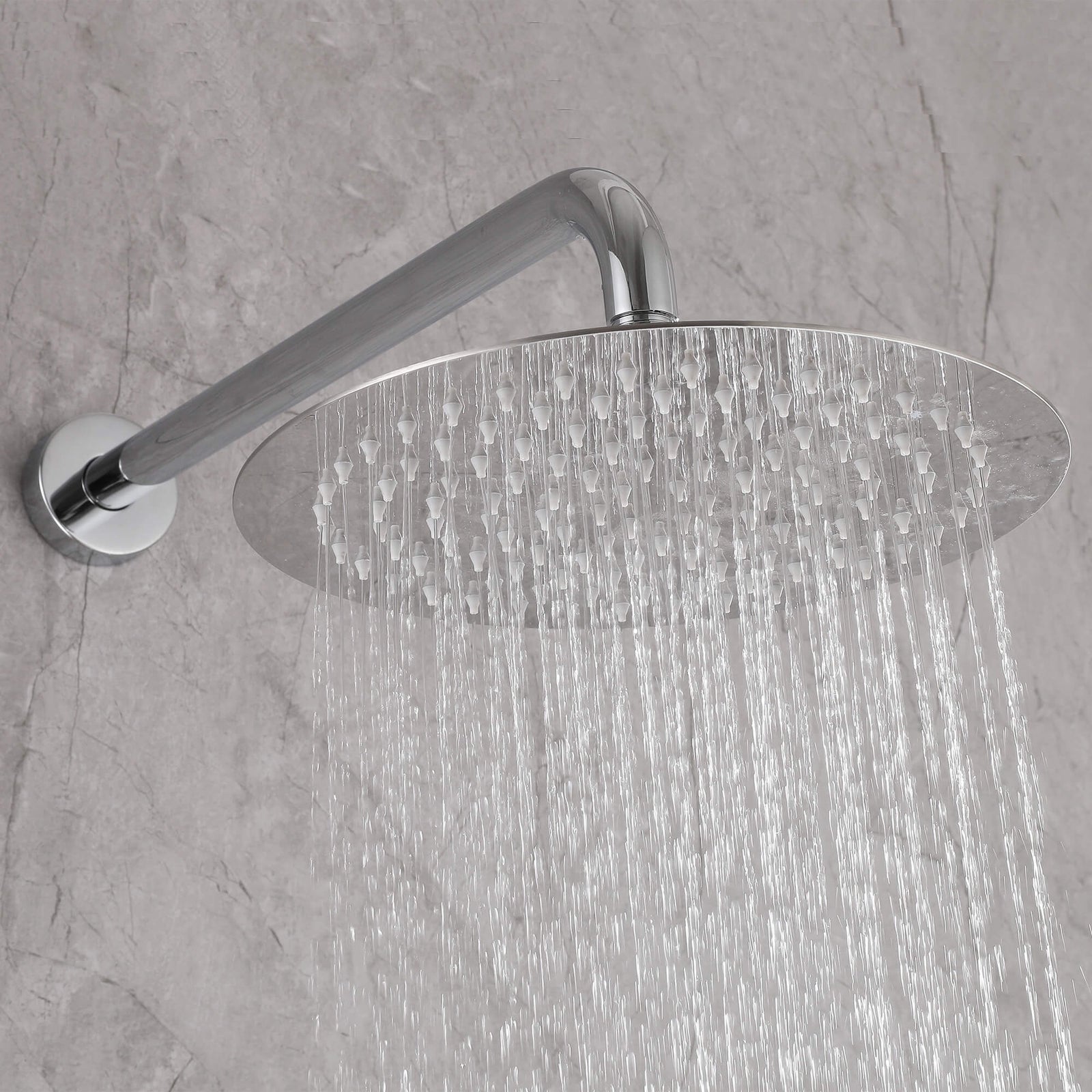

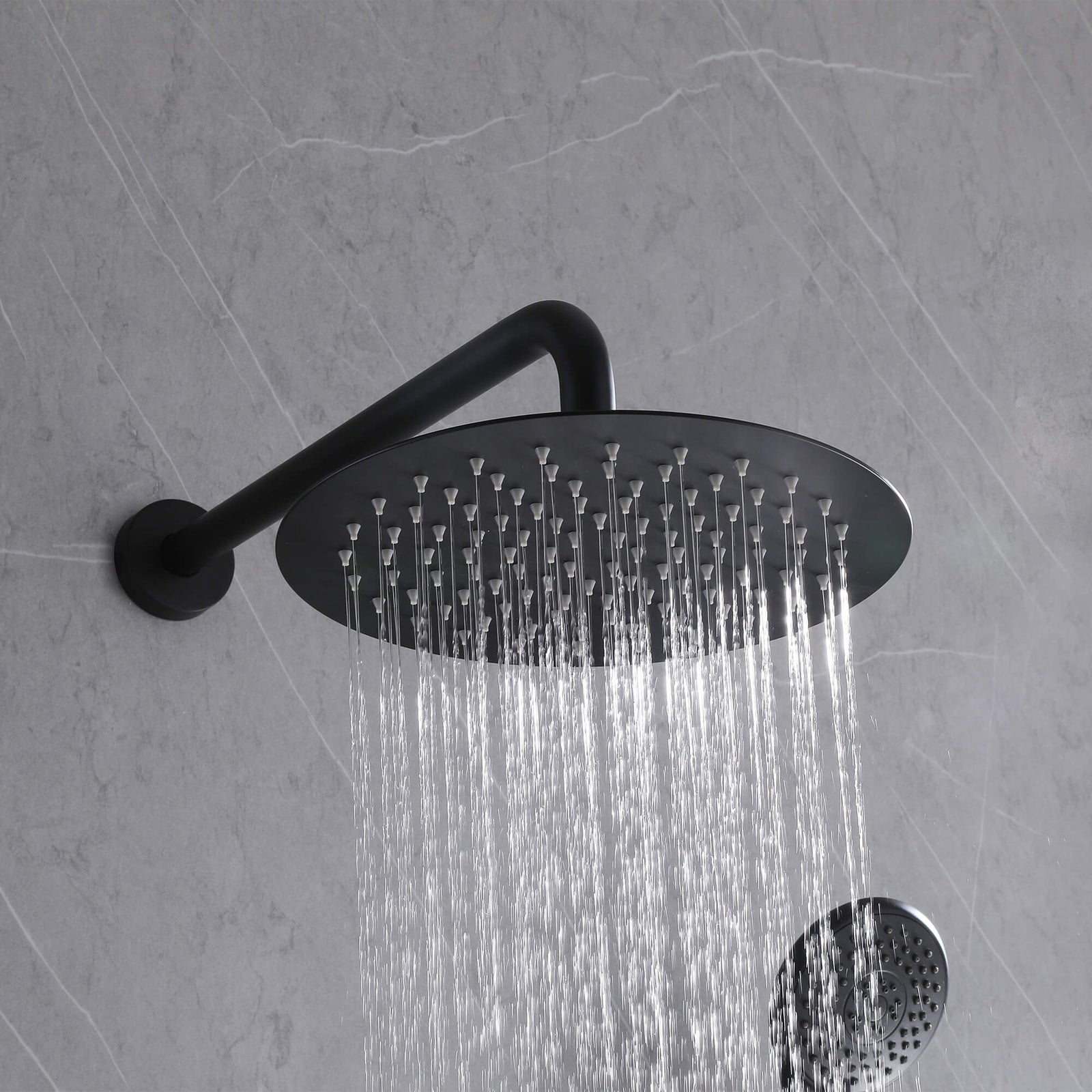

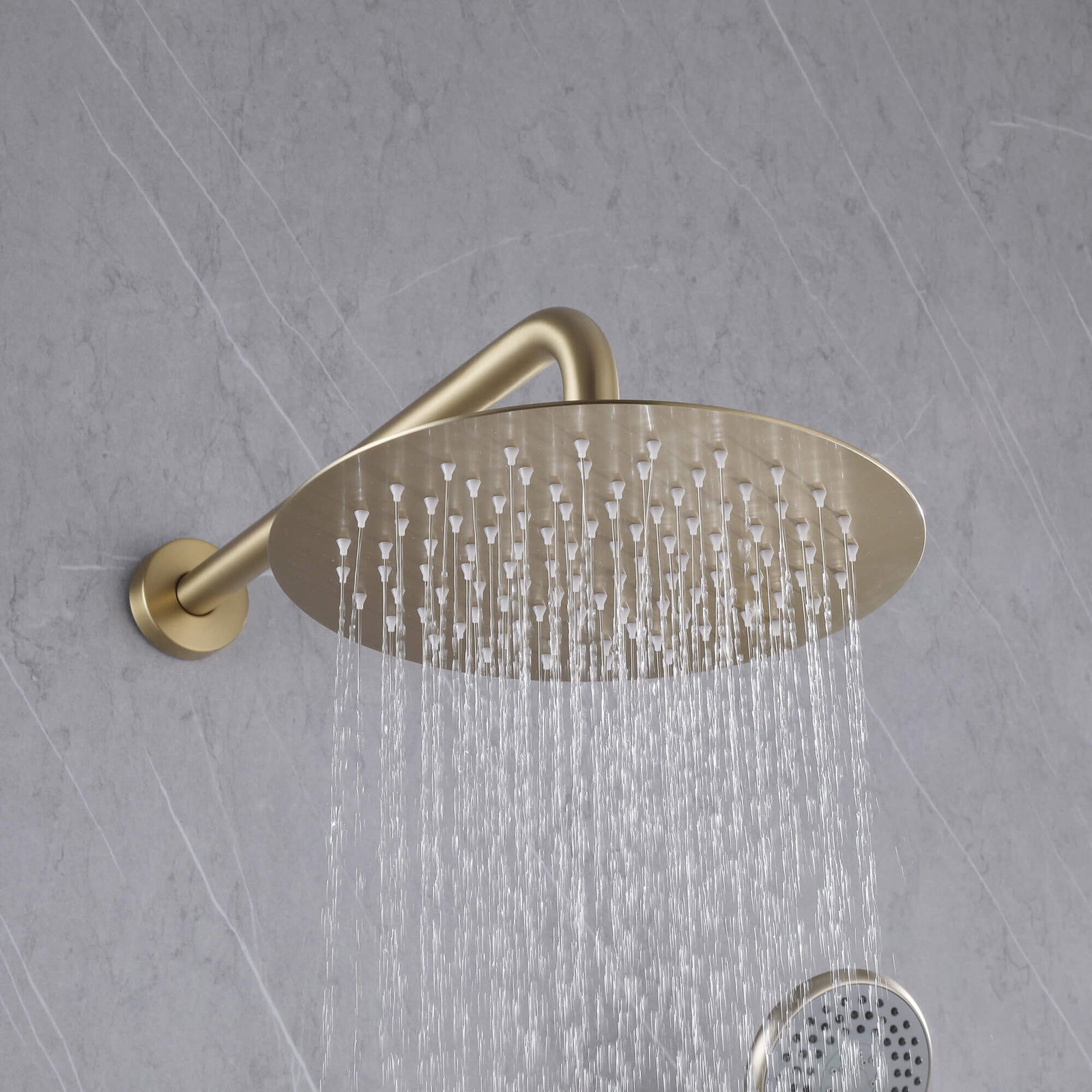

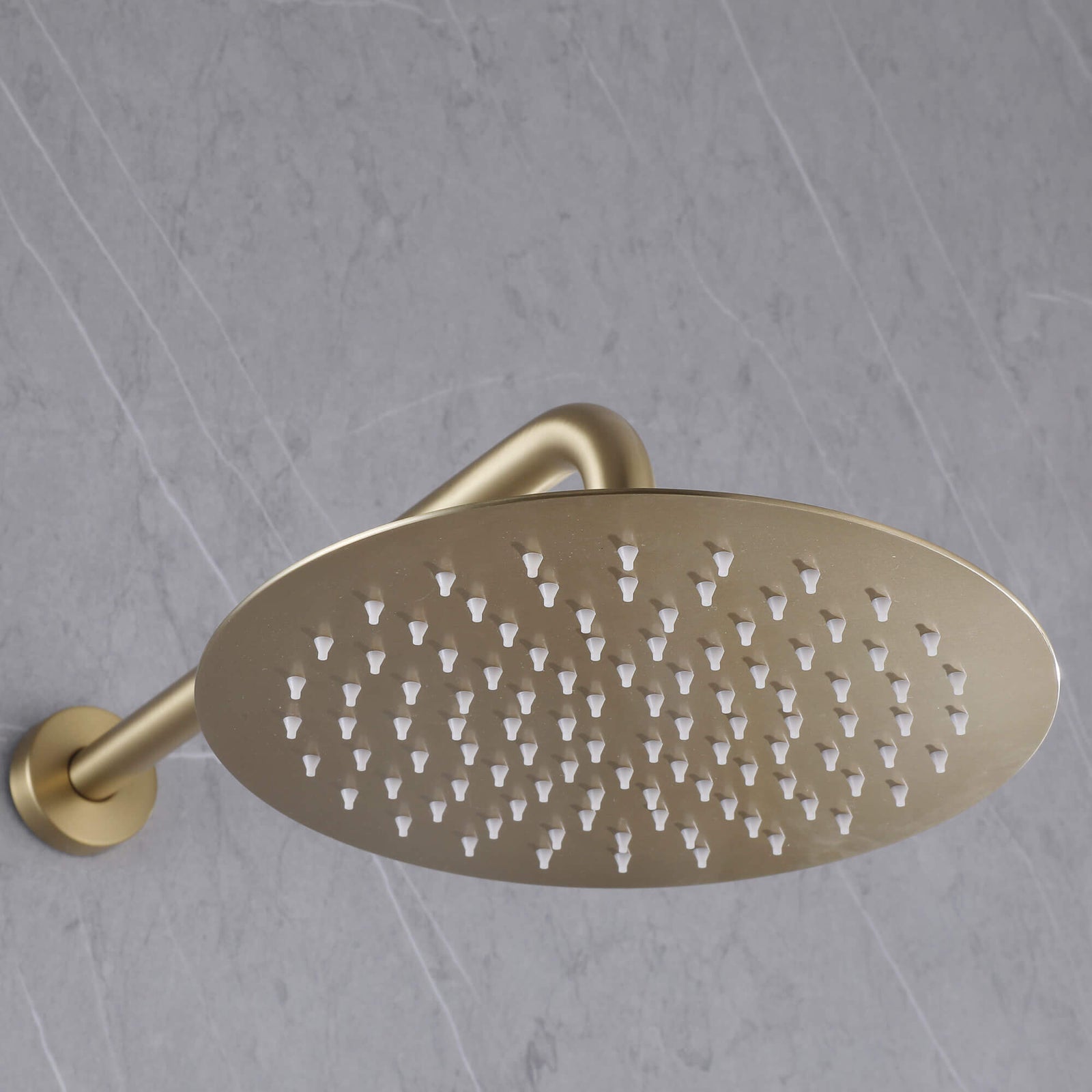

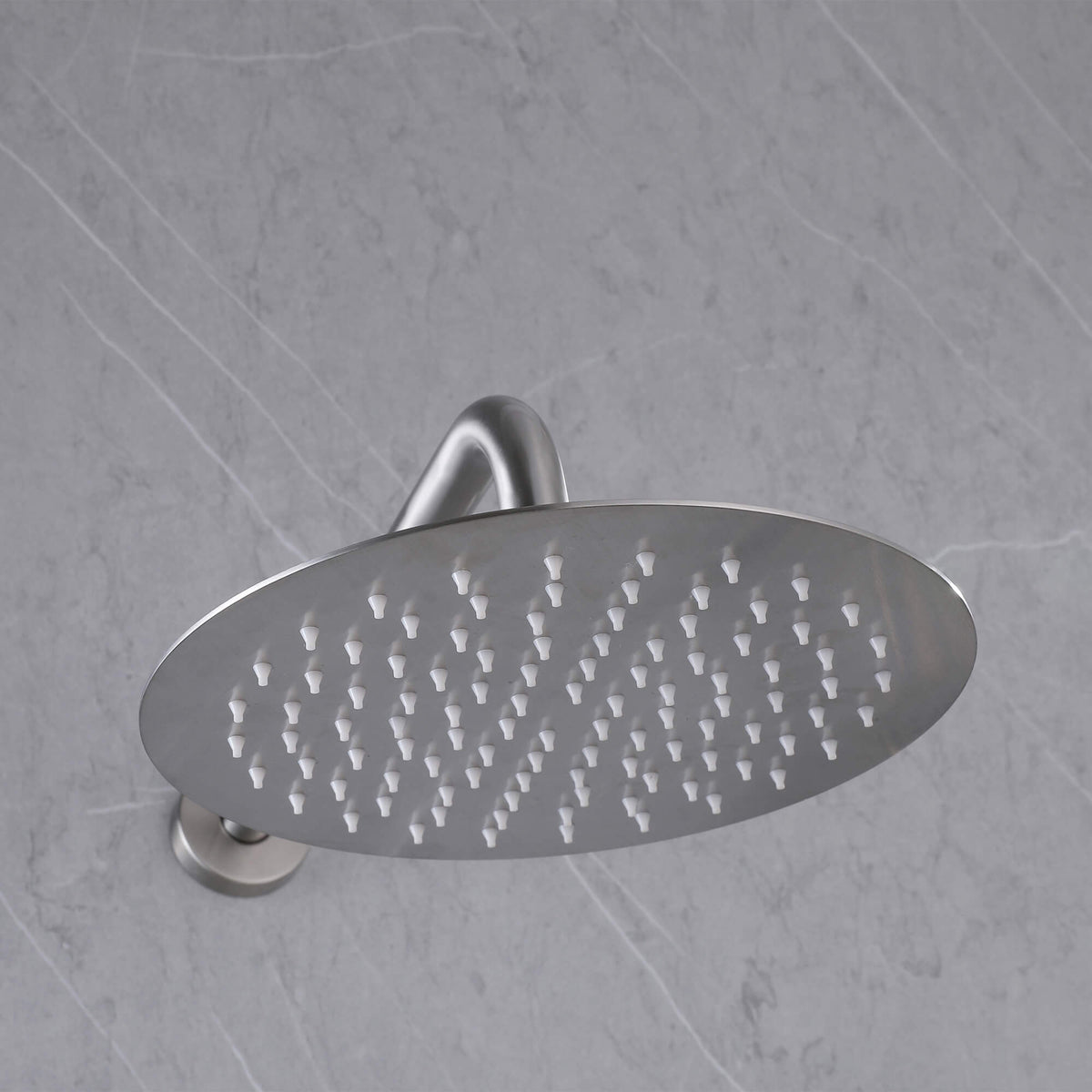

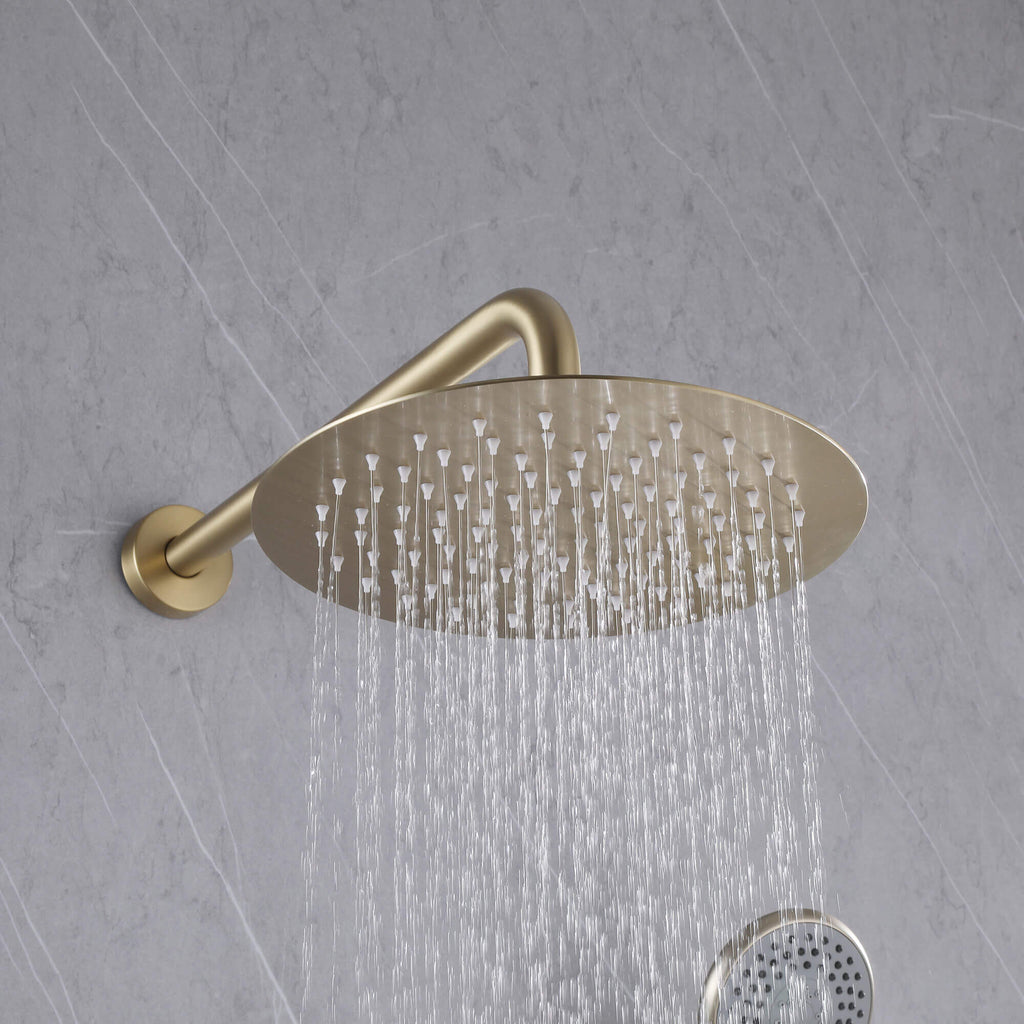

• 10-Inch Ultra-Thin 304 Stainless Steel Rain Canopy
  Envelop your body under a soothing, full-coverage downpour distributed via a lightweight, laser-welded architectural round panel that prevents structural ceiling strain while resisting rust and mineral scaling.


• Fluid Directional Swivel Ball Joint
  Direct your overhead downpour exactly where you want it using a fluid swivel joint built seamlessly into the ultra-thin architectural round rain panel.


• 16-Inch Extended Overhead Shower Arm Extension
  Stand tall and wash comfortably beneath an extra-long stainless steel wall-mounted cantilever arm engineered to position the rain canopy far out into your enclosure, leaving ample headroom for taller users.

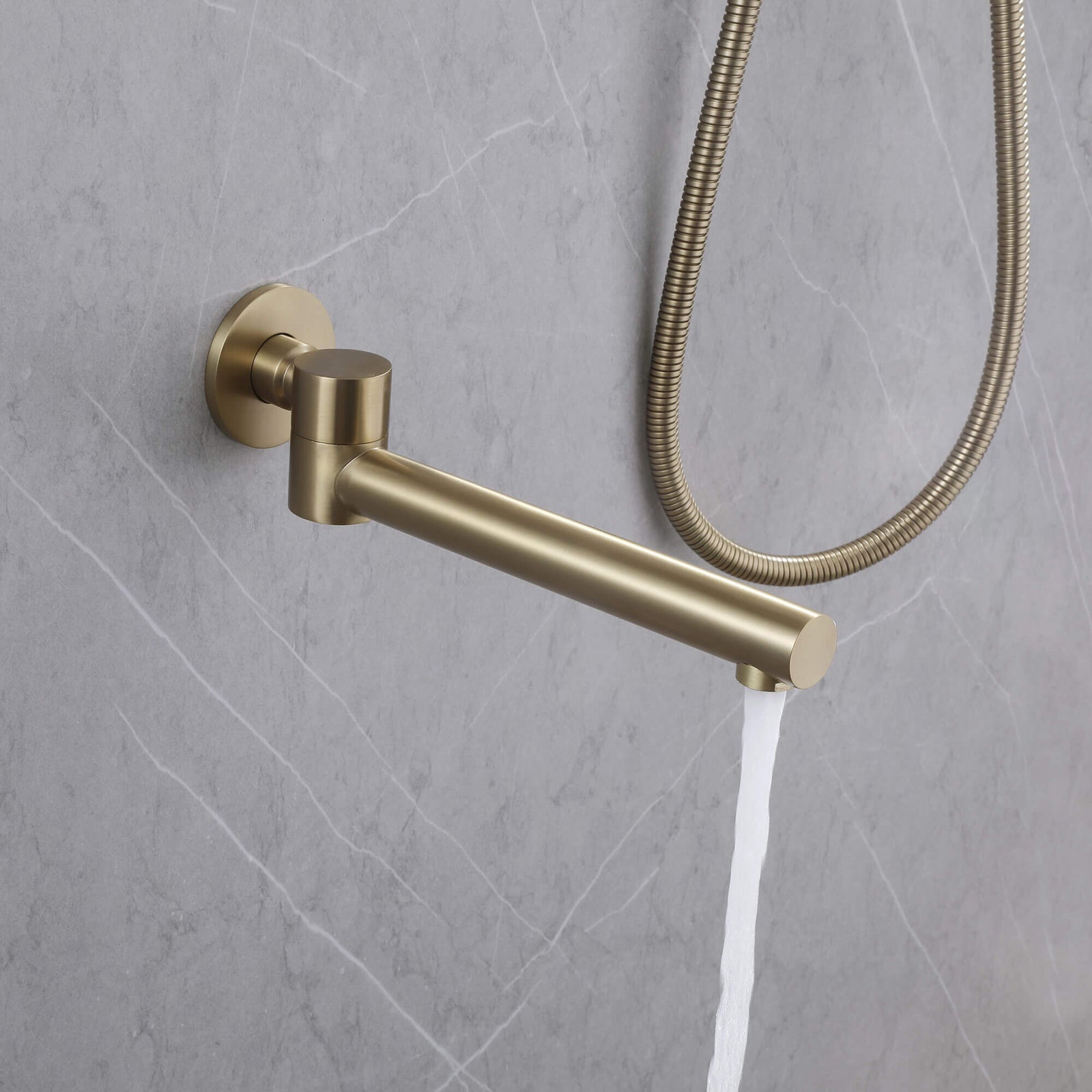

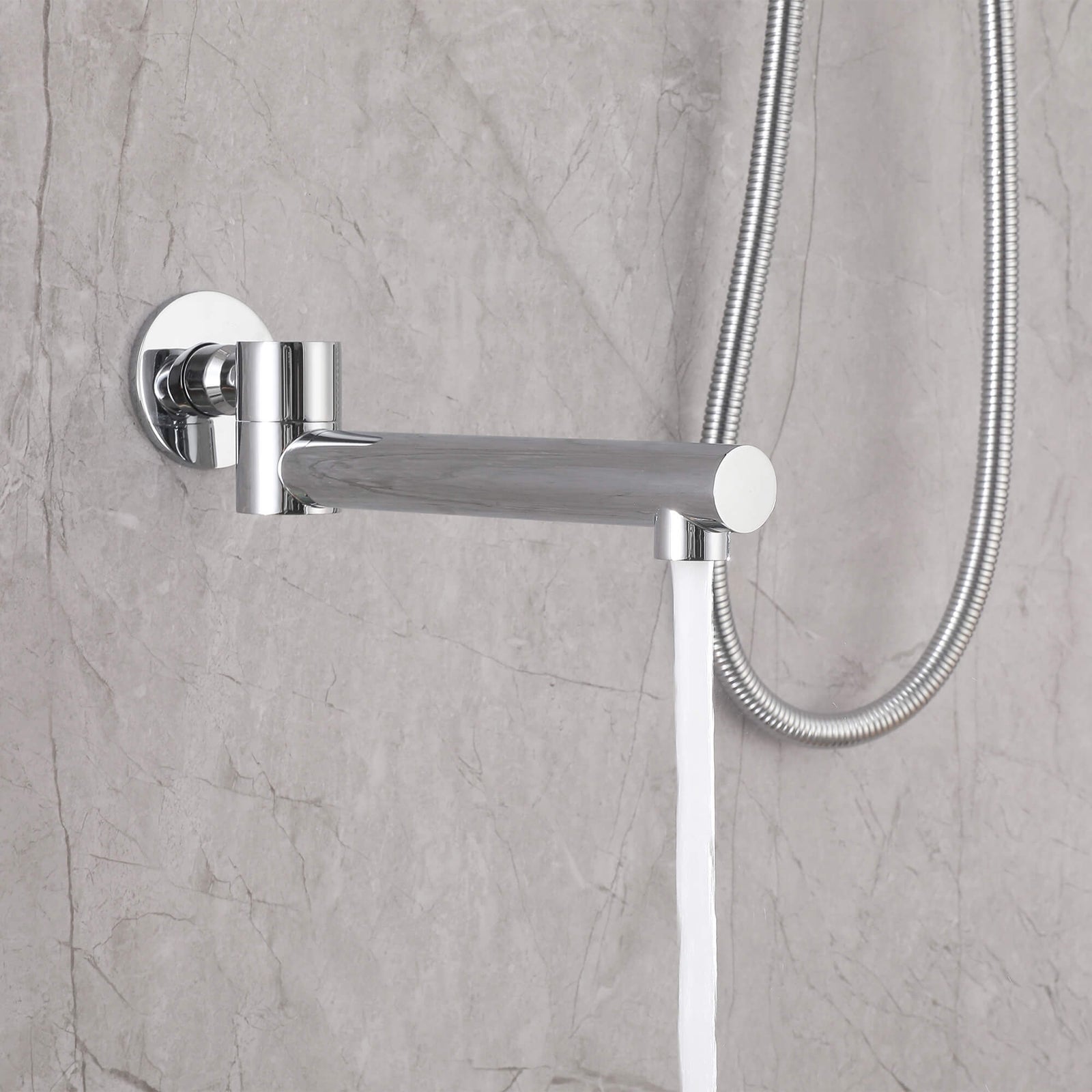

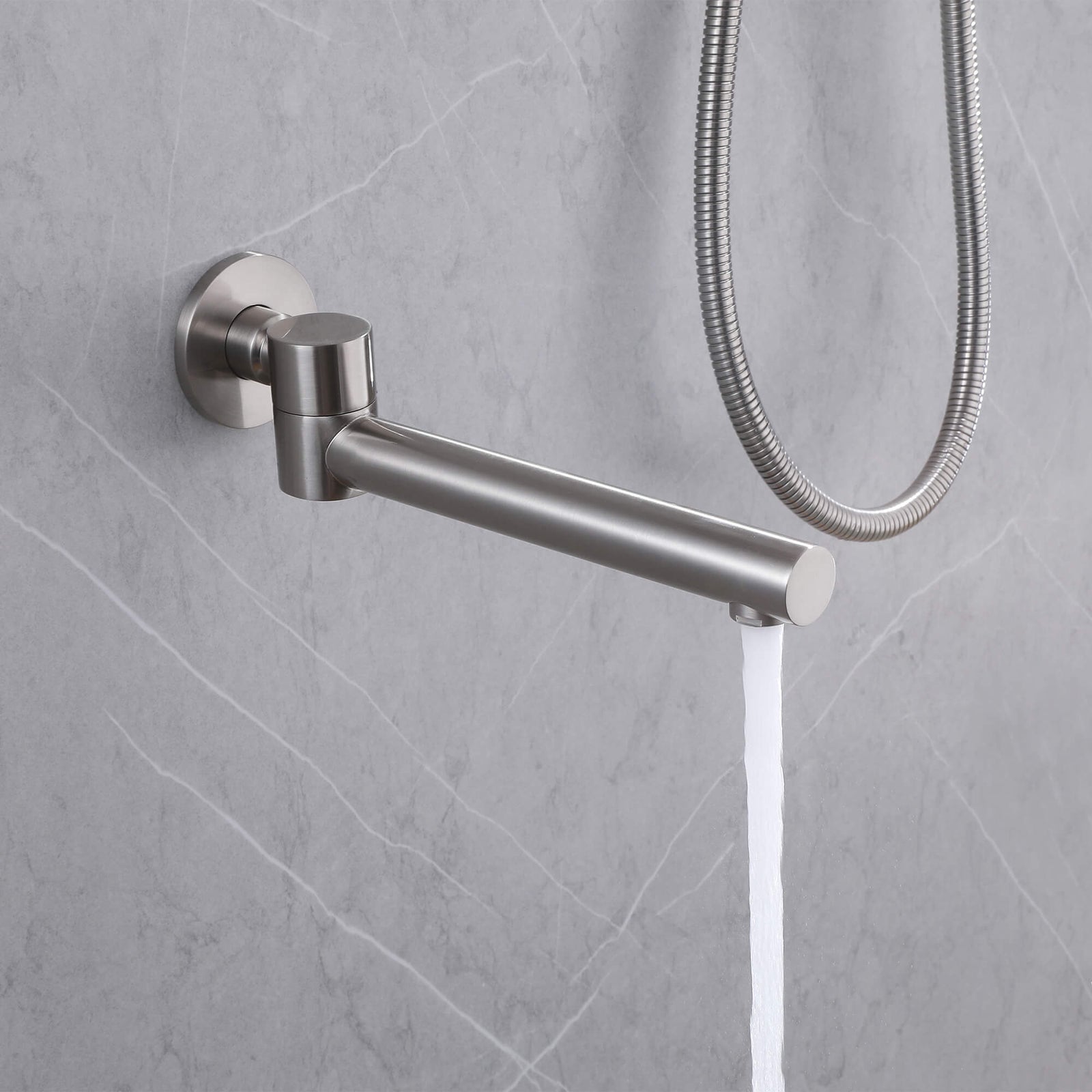

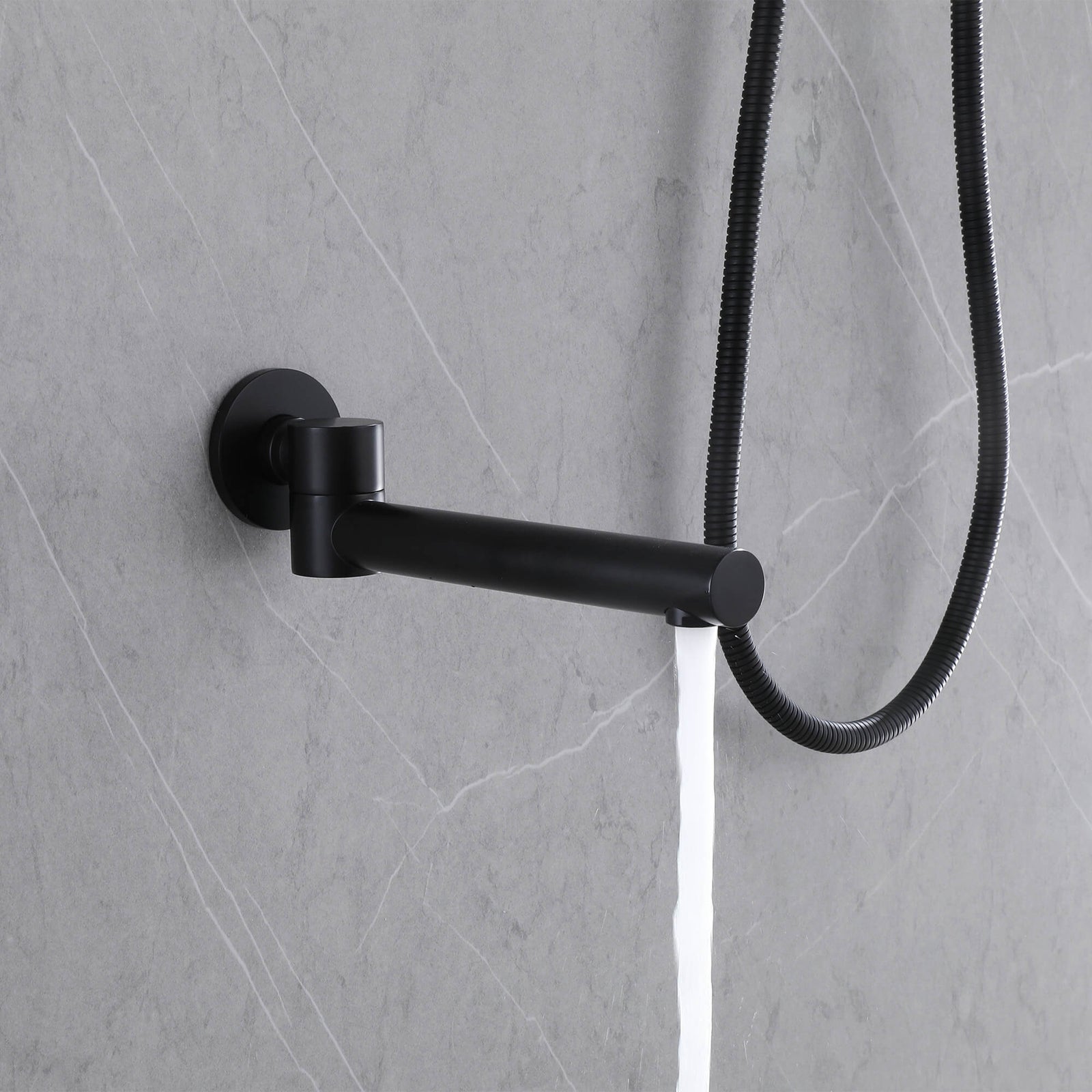

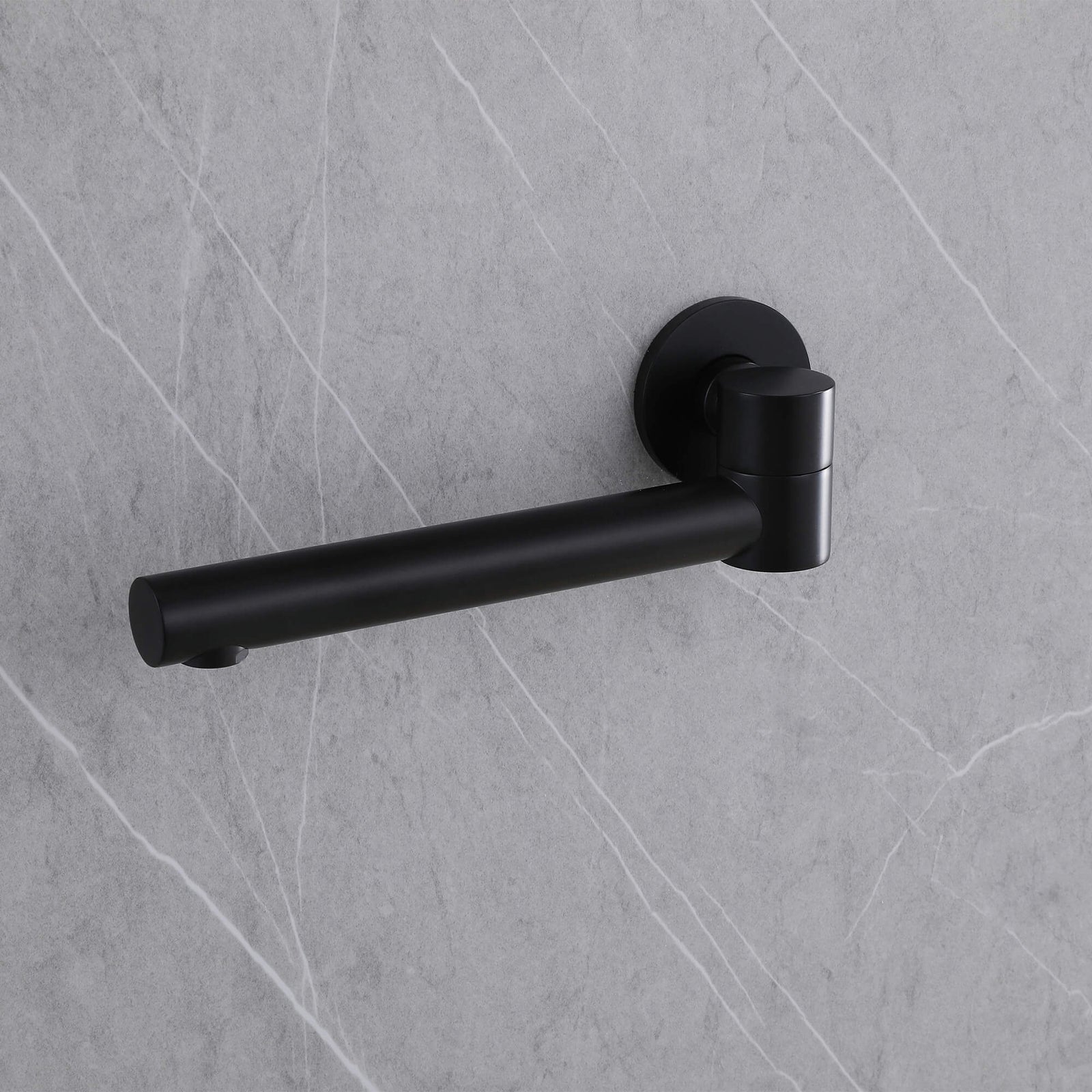

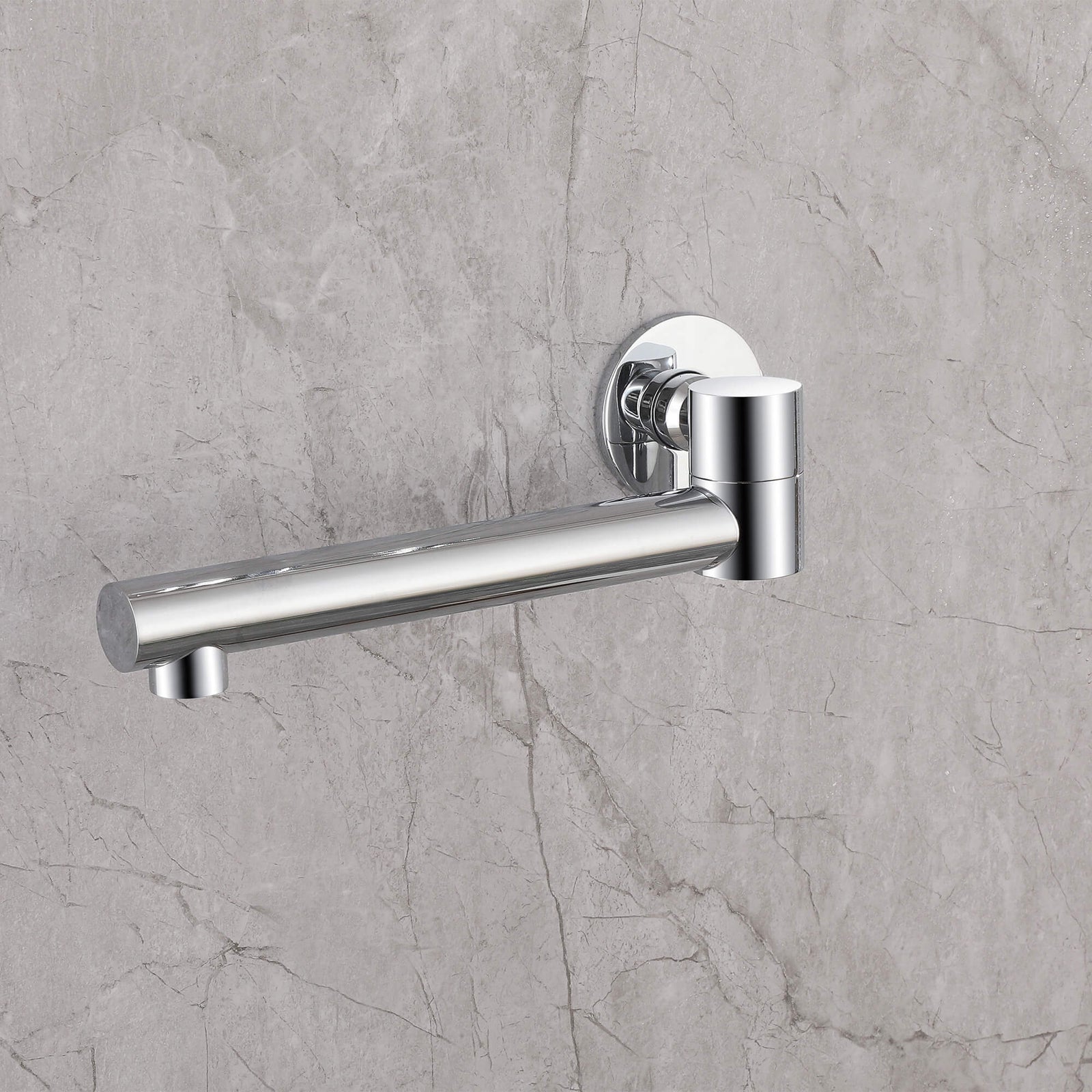

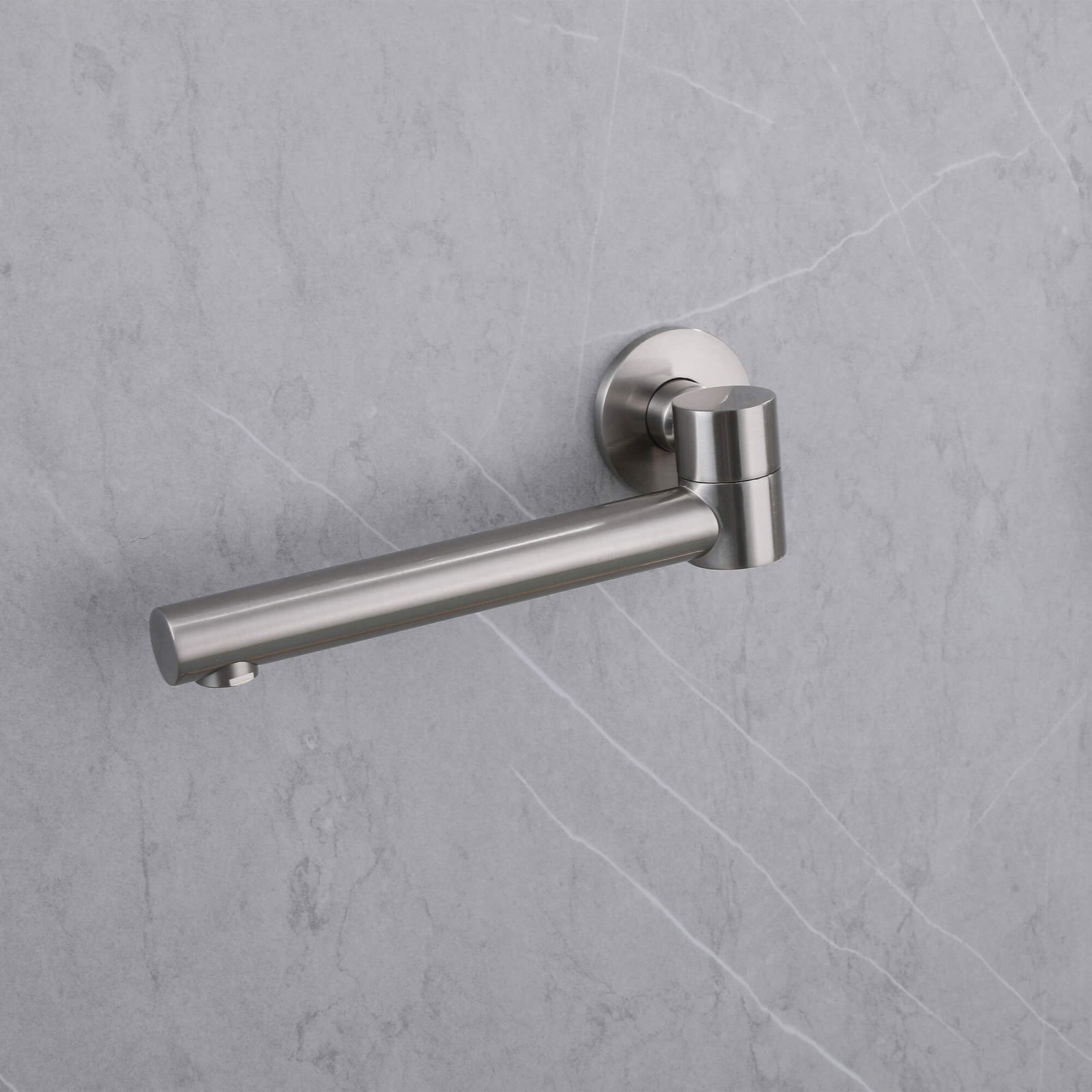

• 10.4-Inch Swivel Fold-Away 3.6 GPM Tub Spout
  Fill deep soaking tubs rapidly with a heavy-duty, solid brass spout pushing out a robust 3.6 GPM flow rate; it smoothly rotates 180 degrees horizontally out of the way when not in use to prevent accidental bumps.

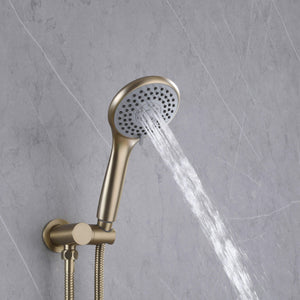

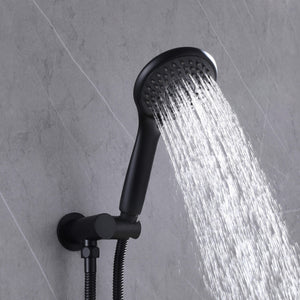

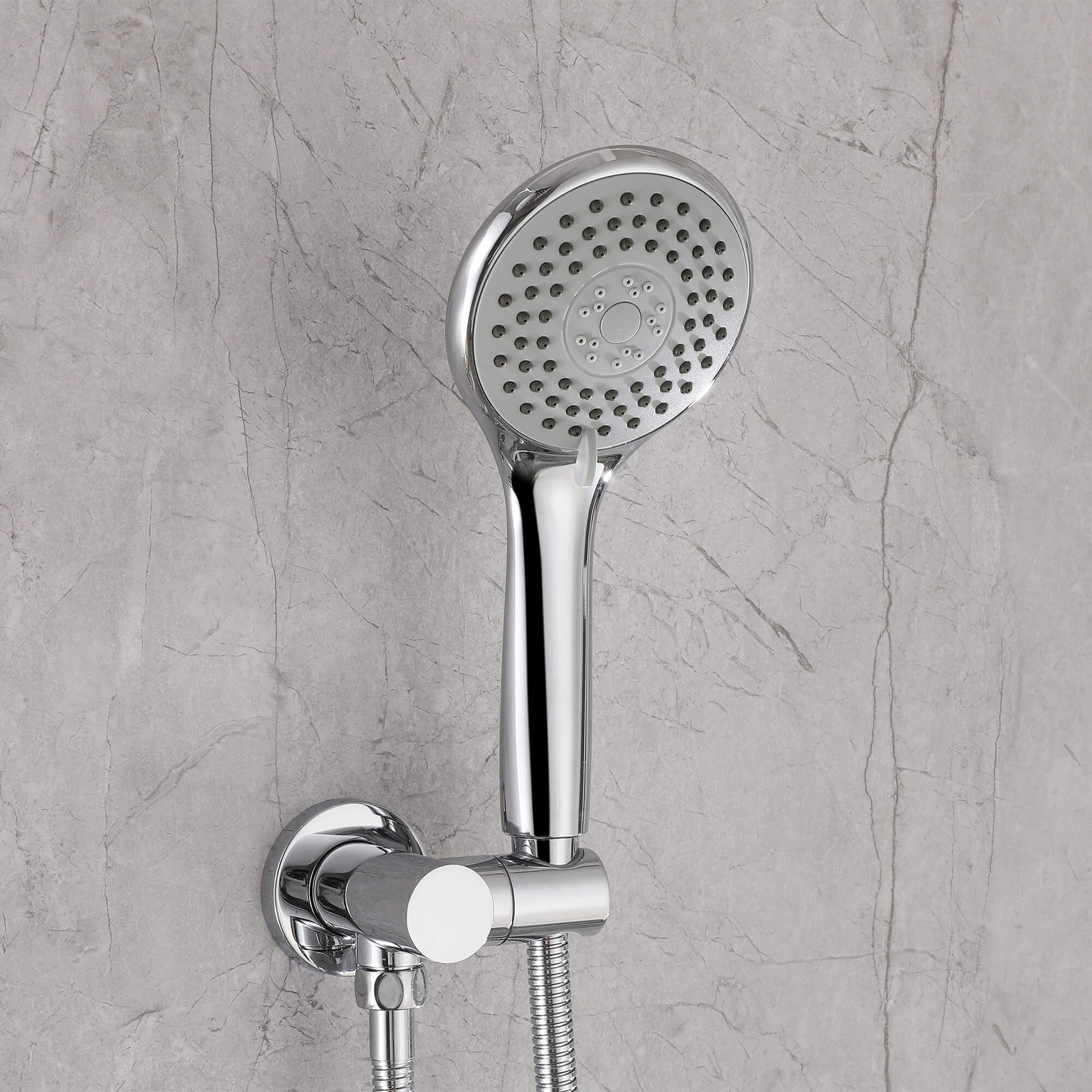

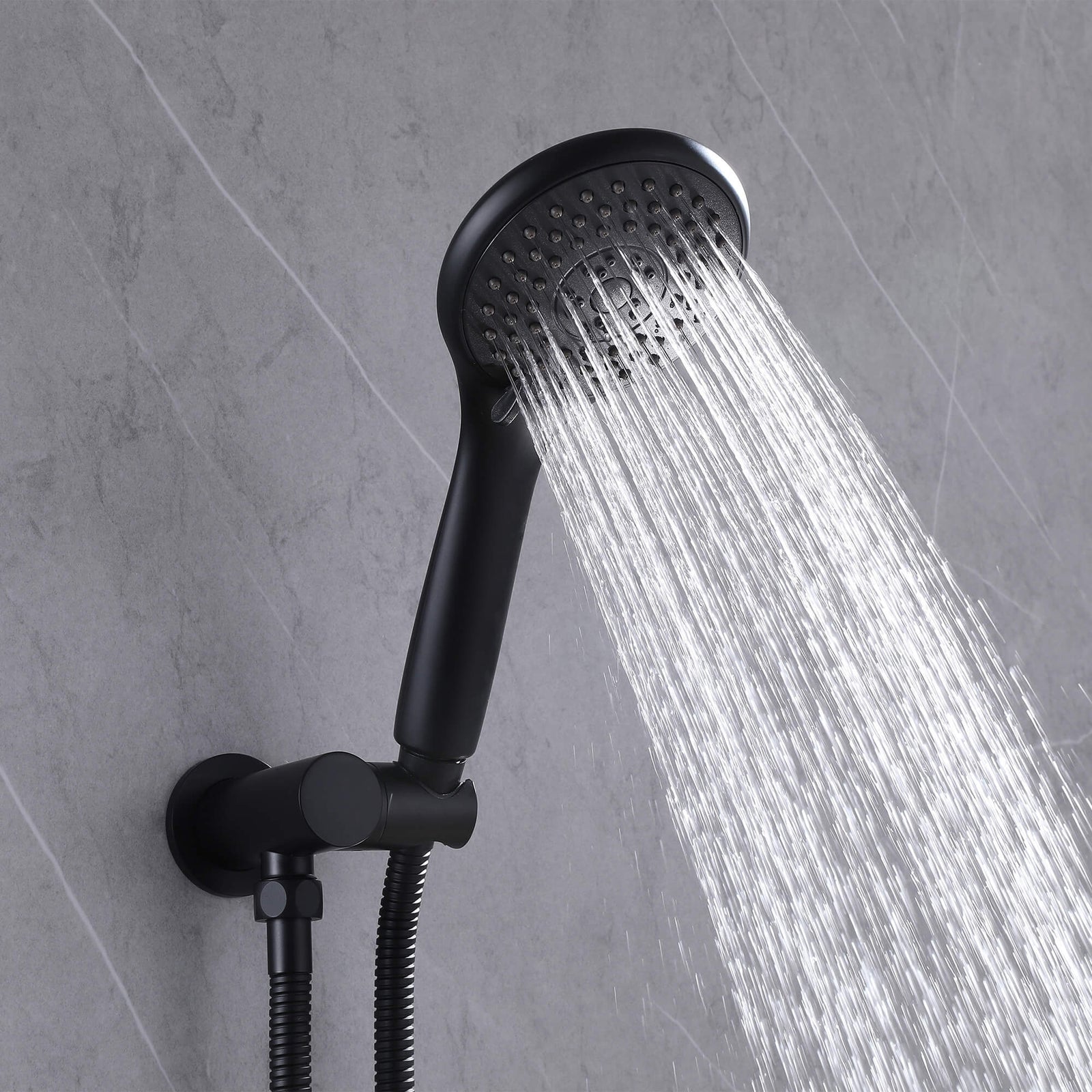

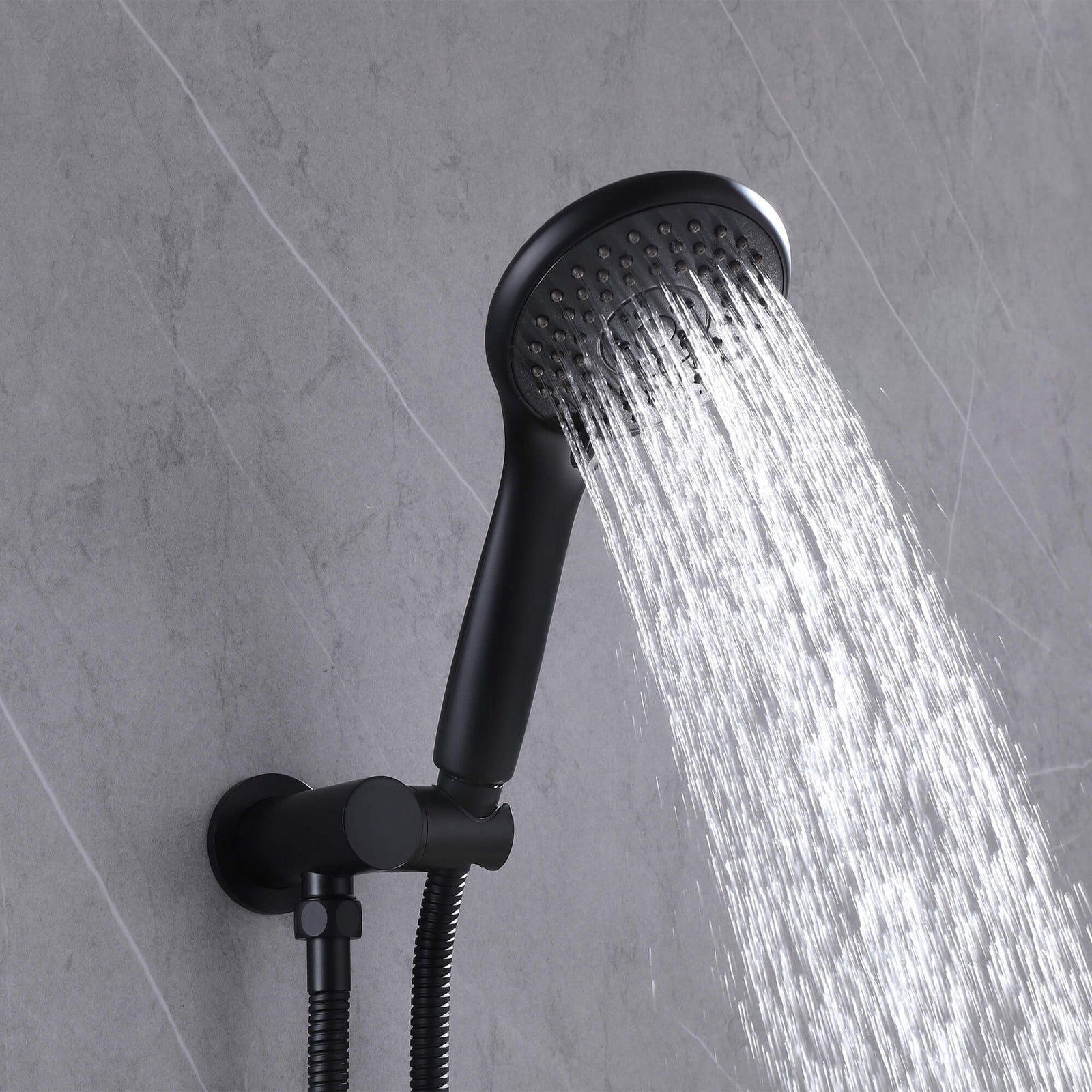

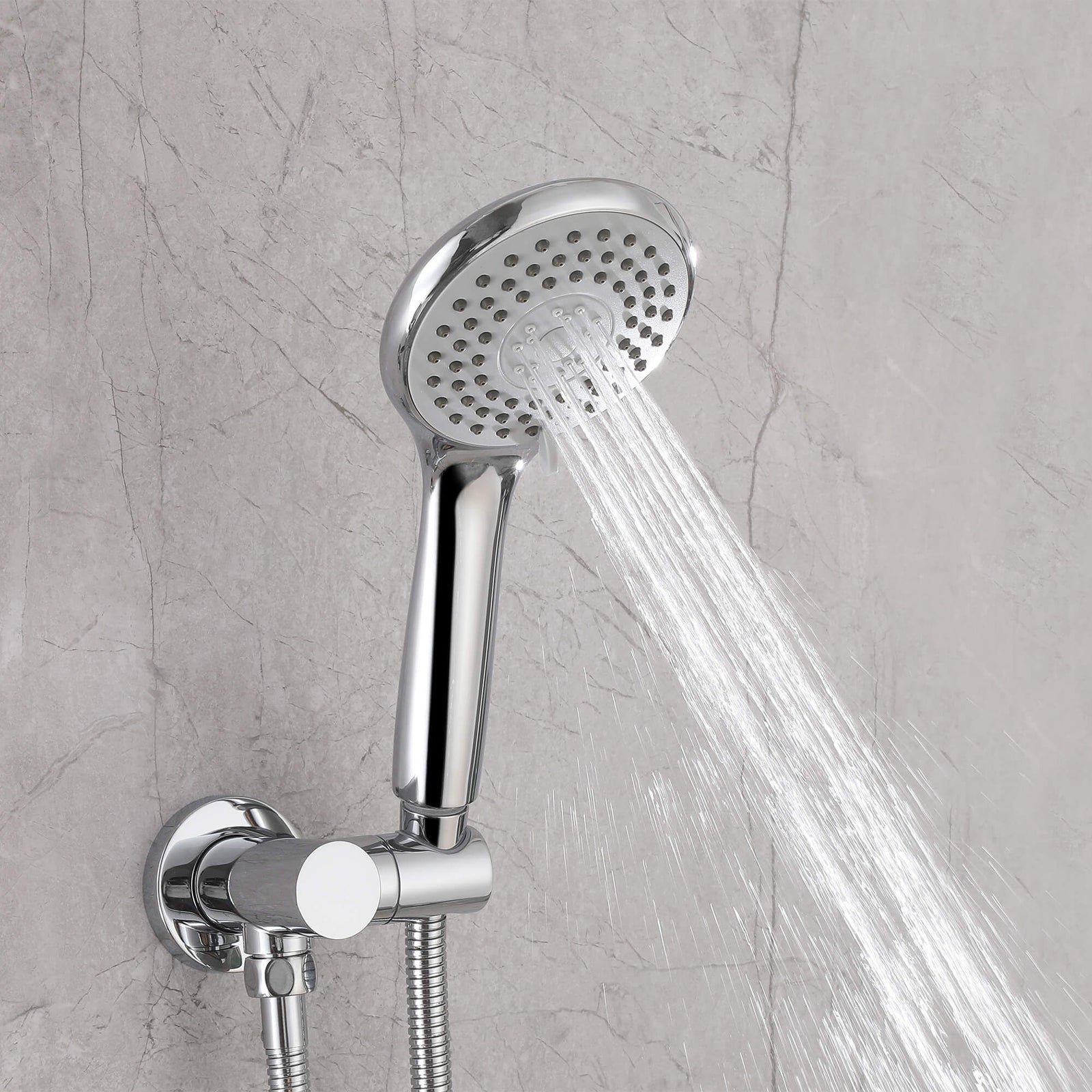

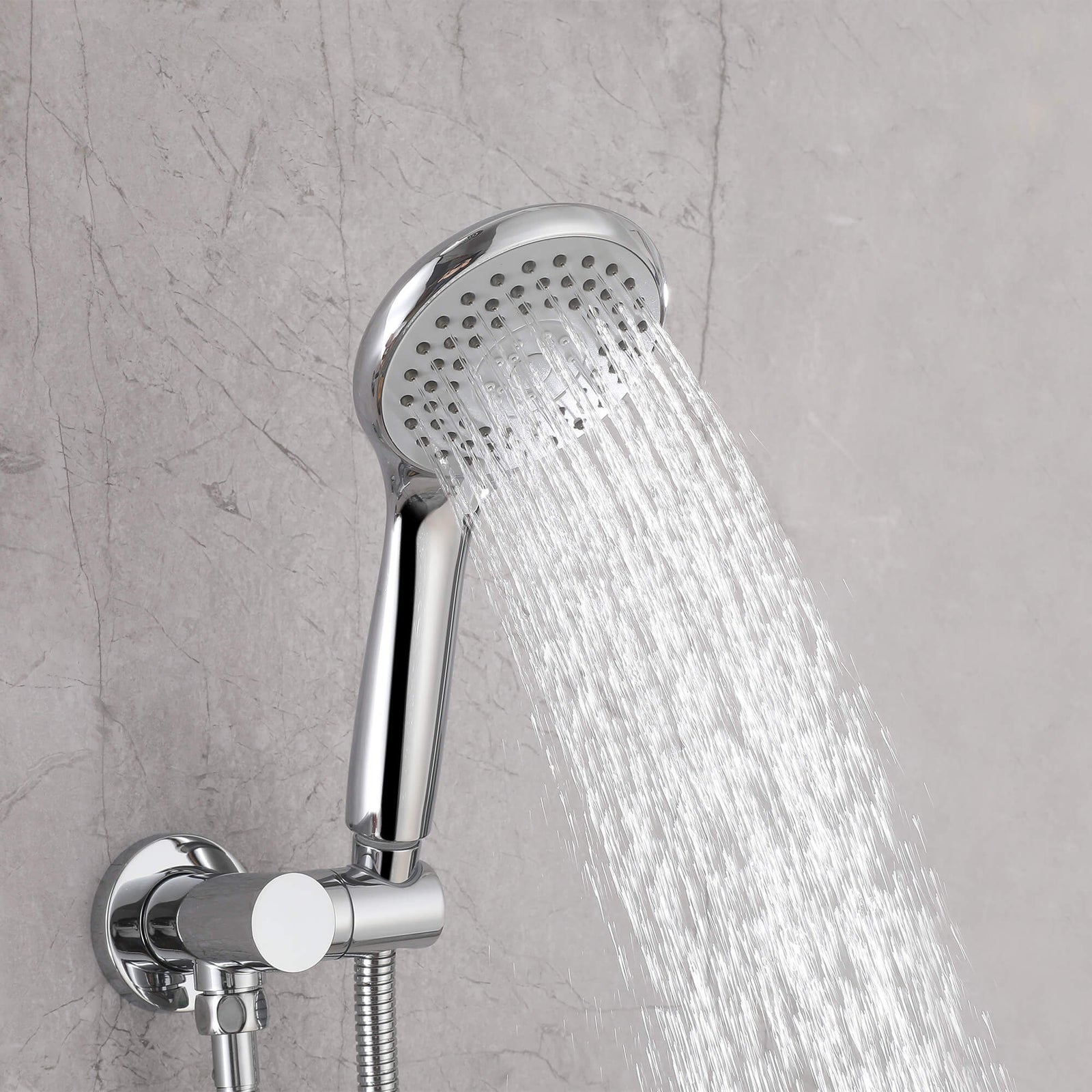

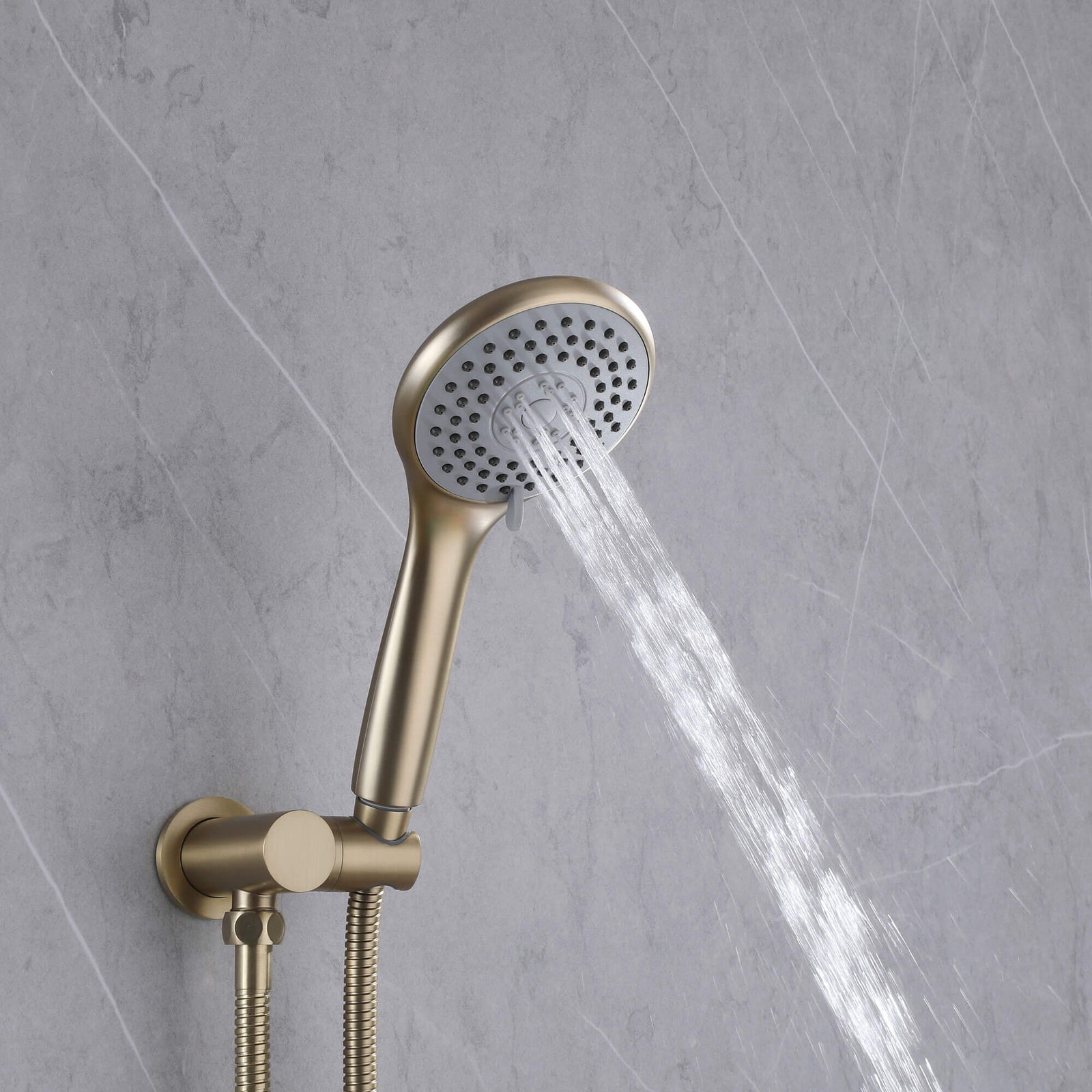

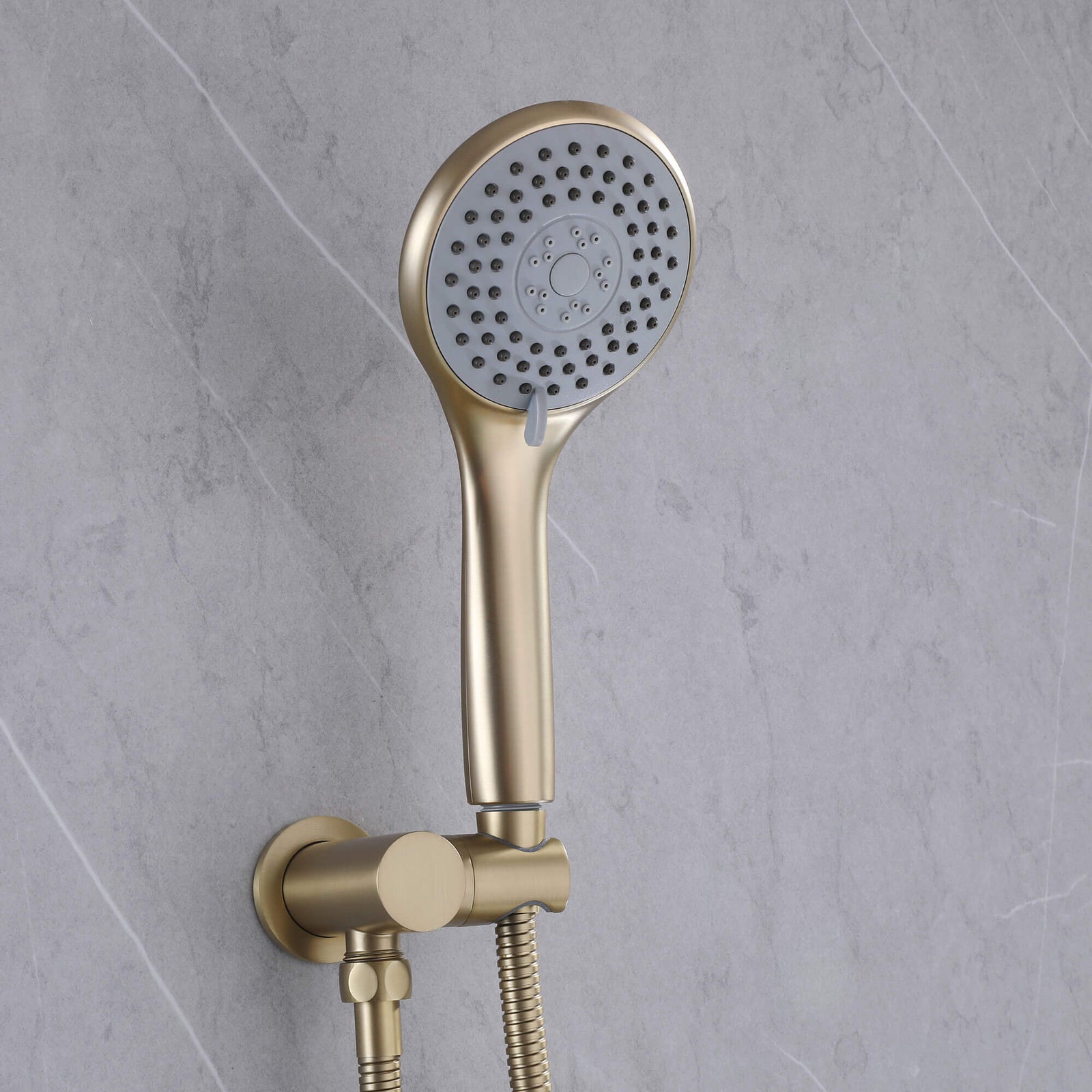

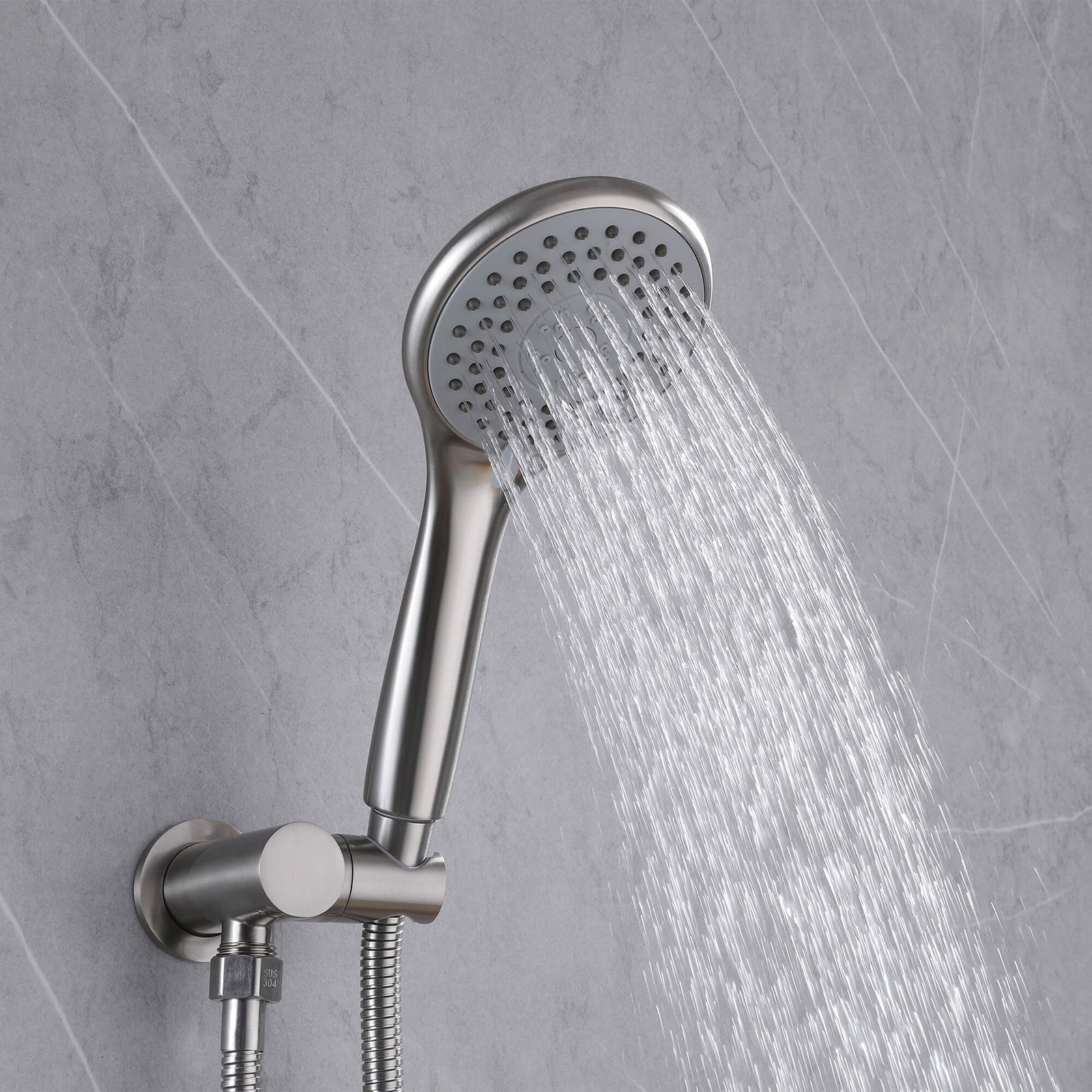

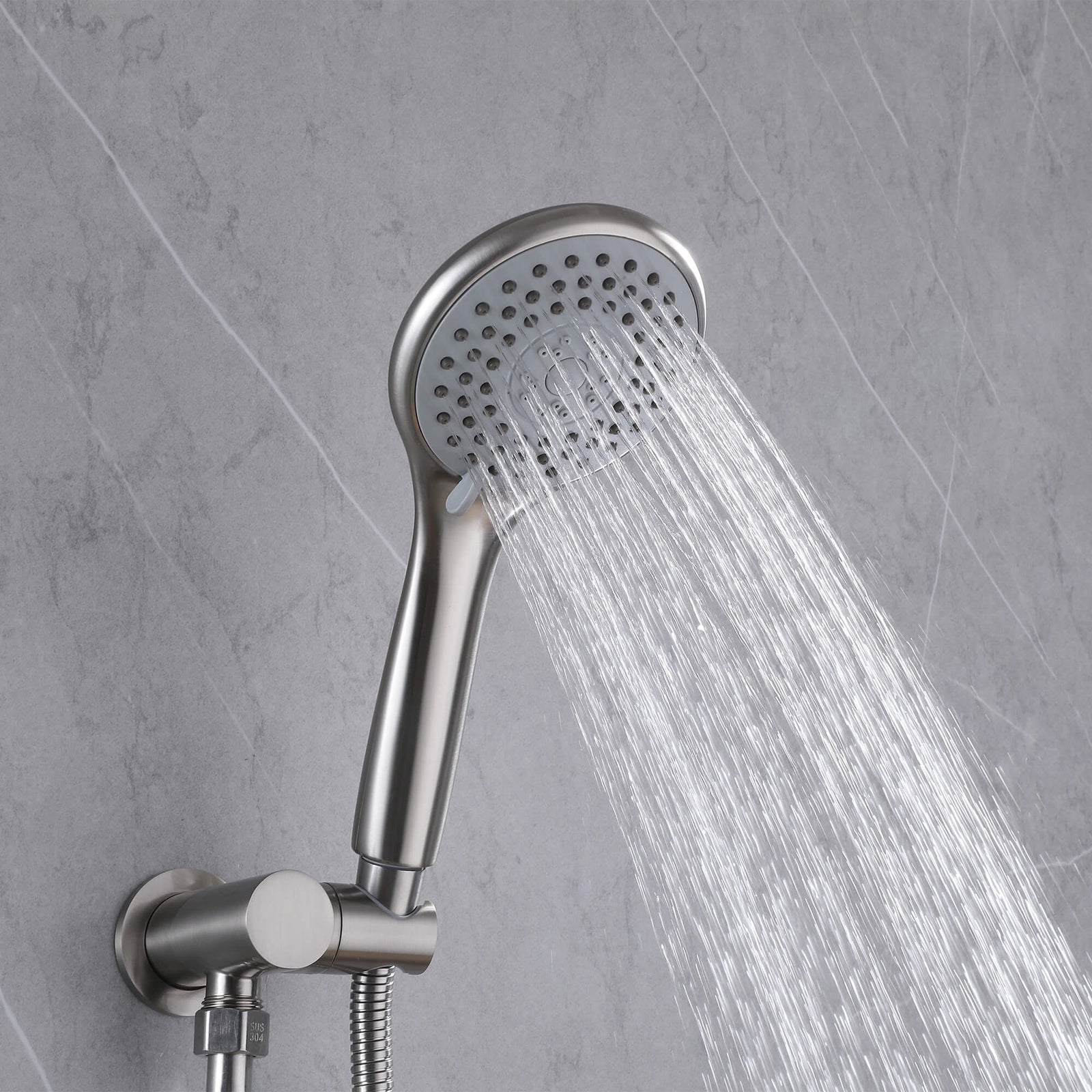

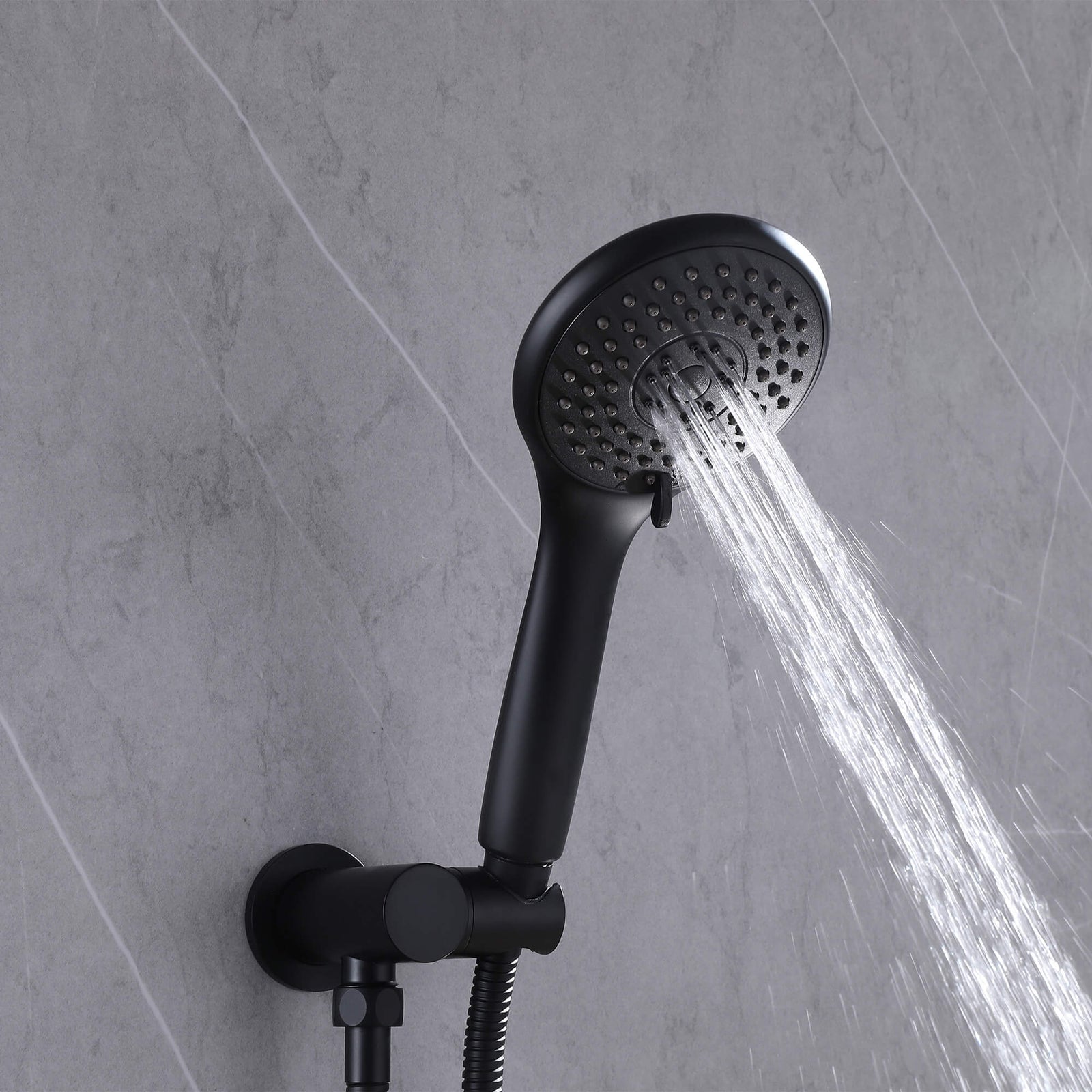

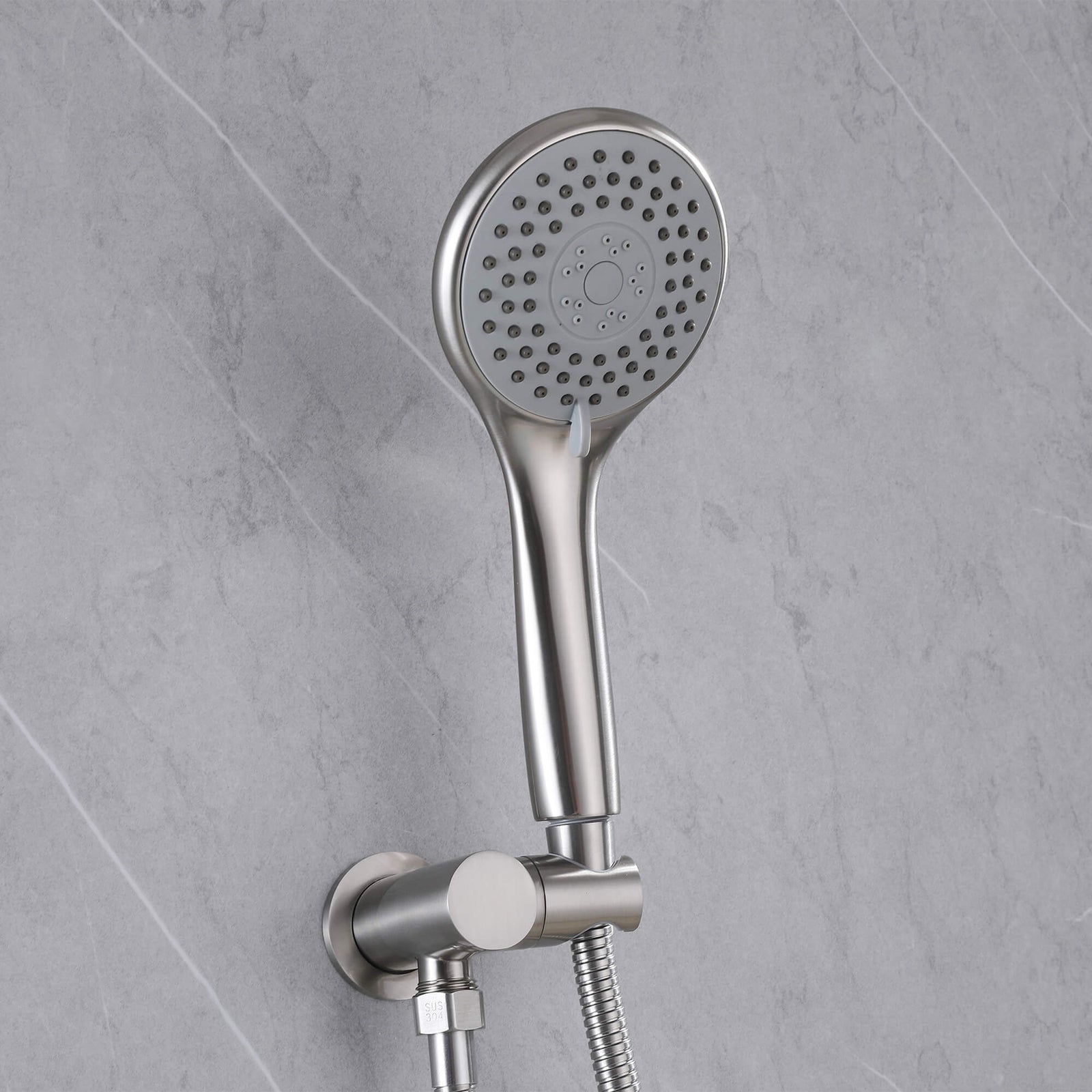

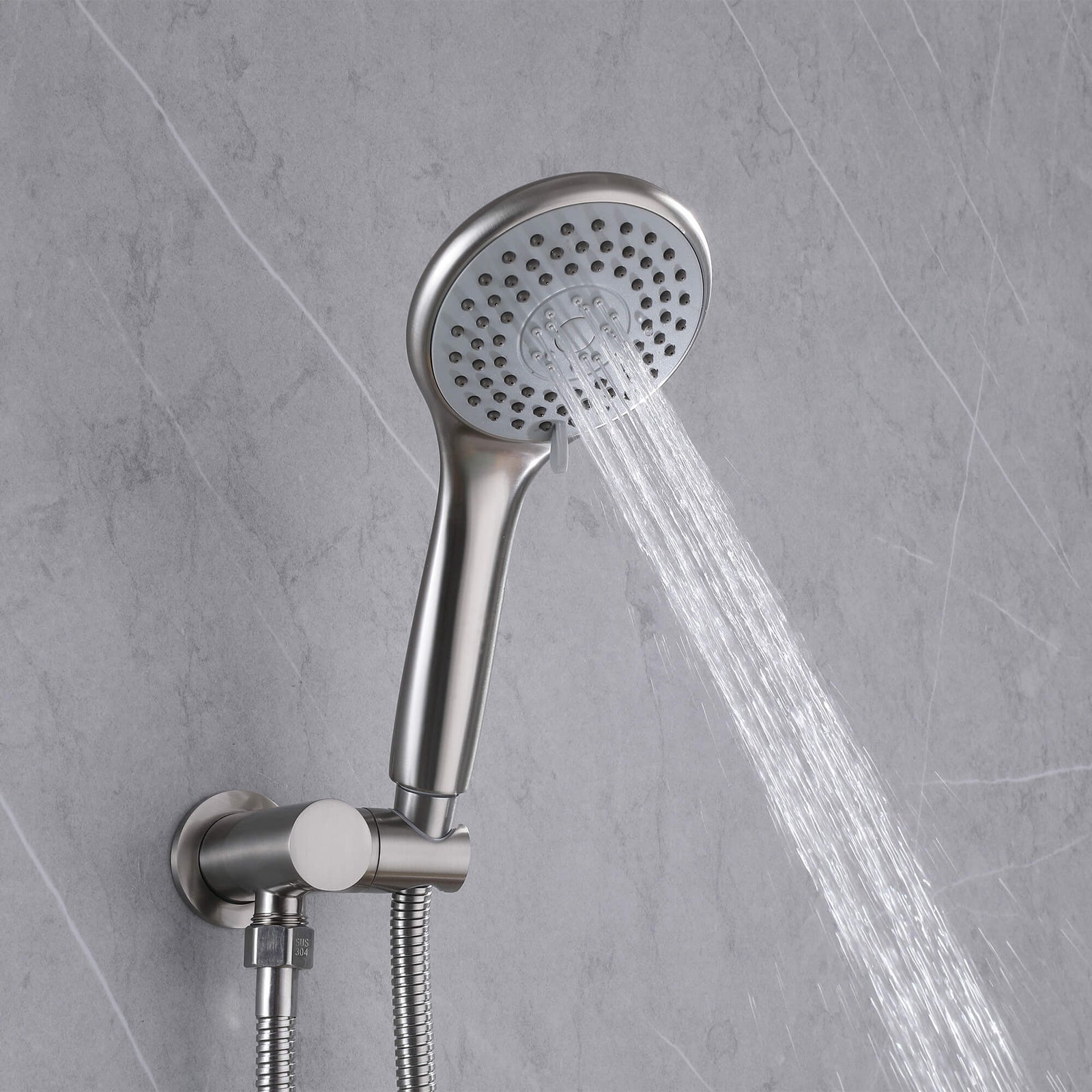

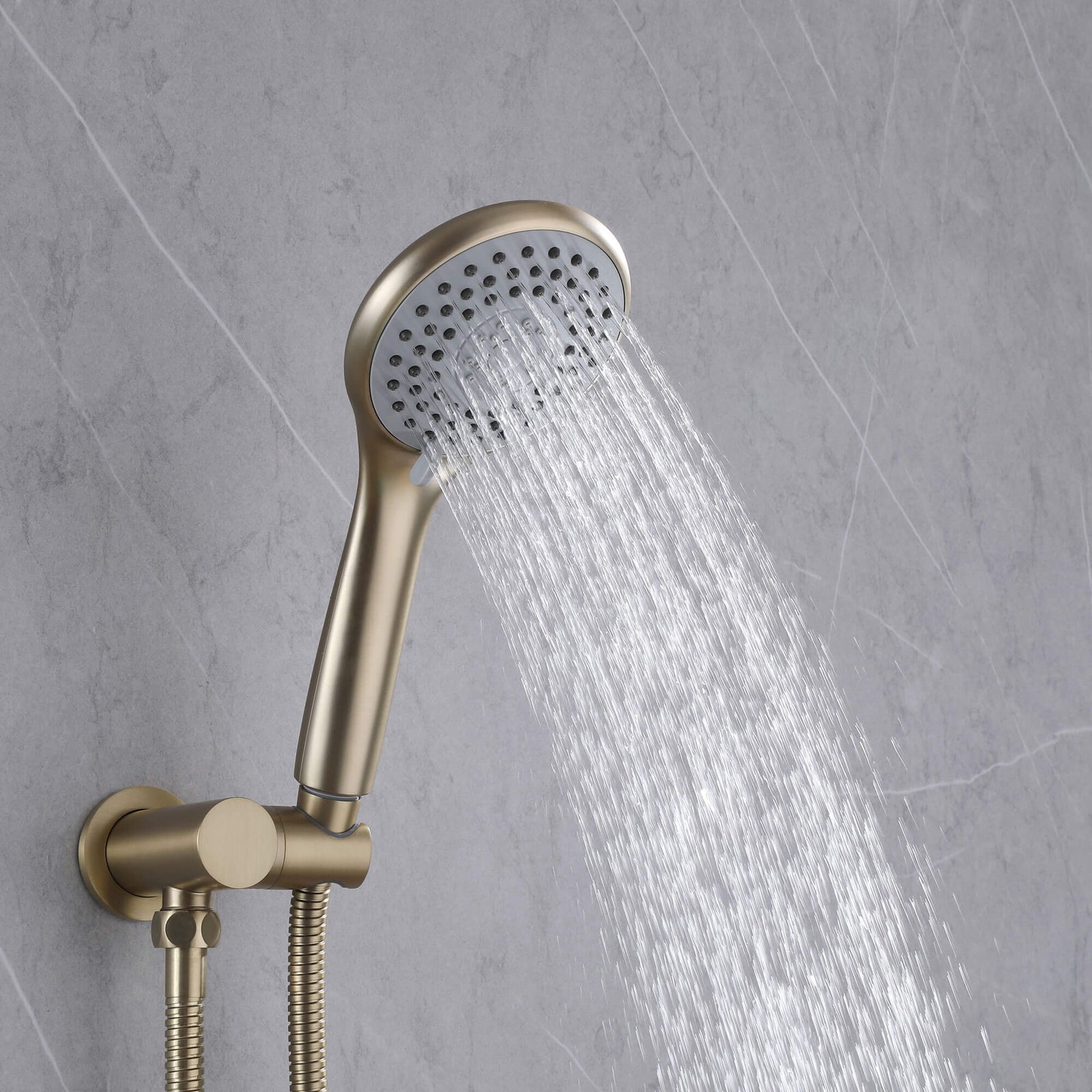

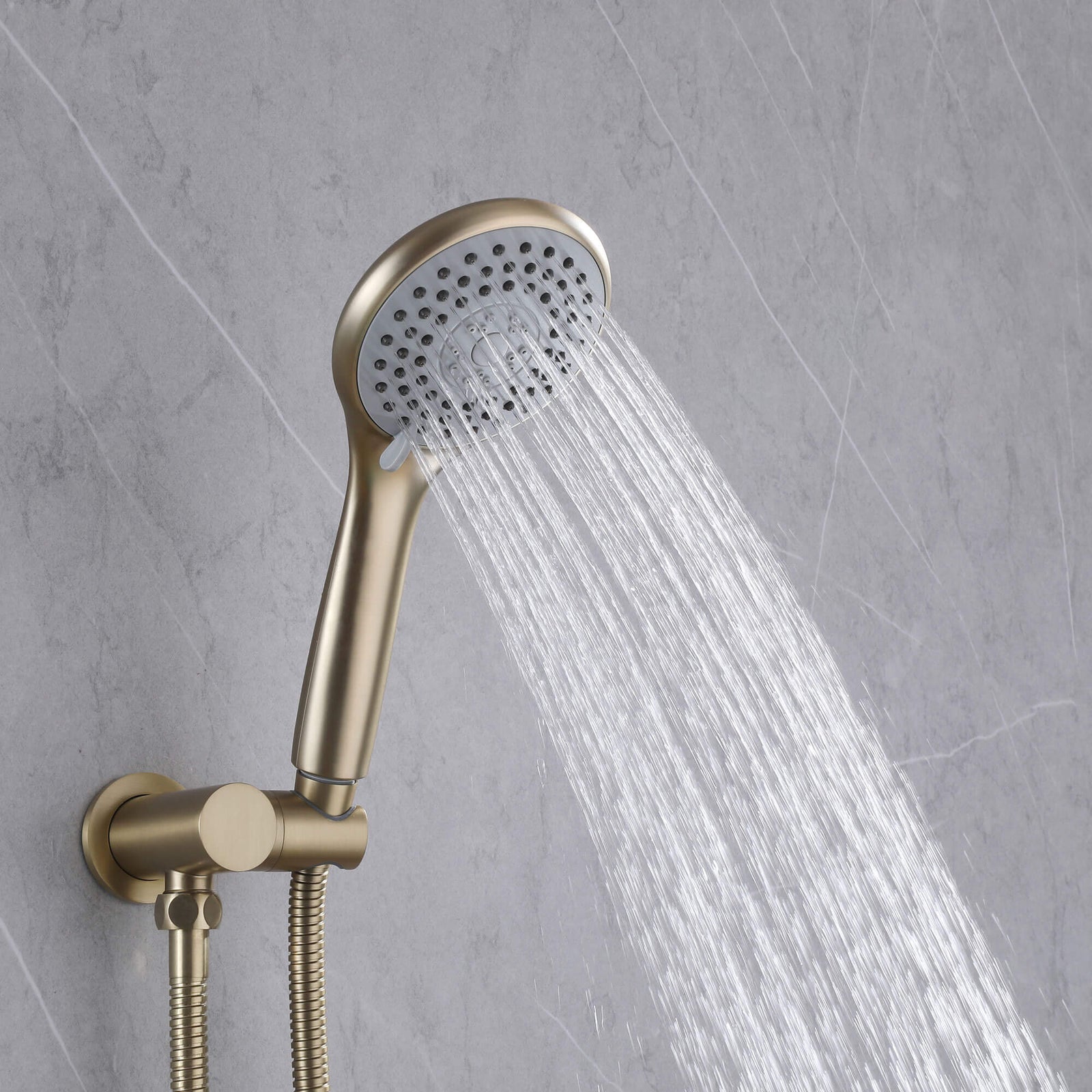

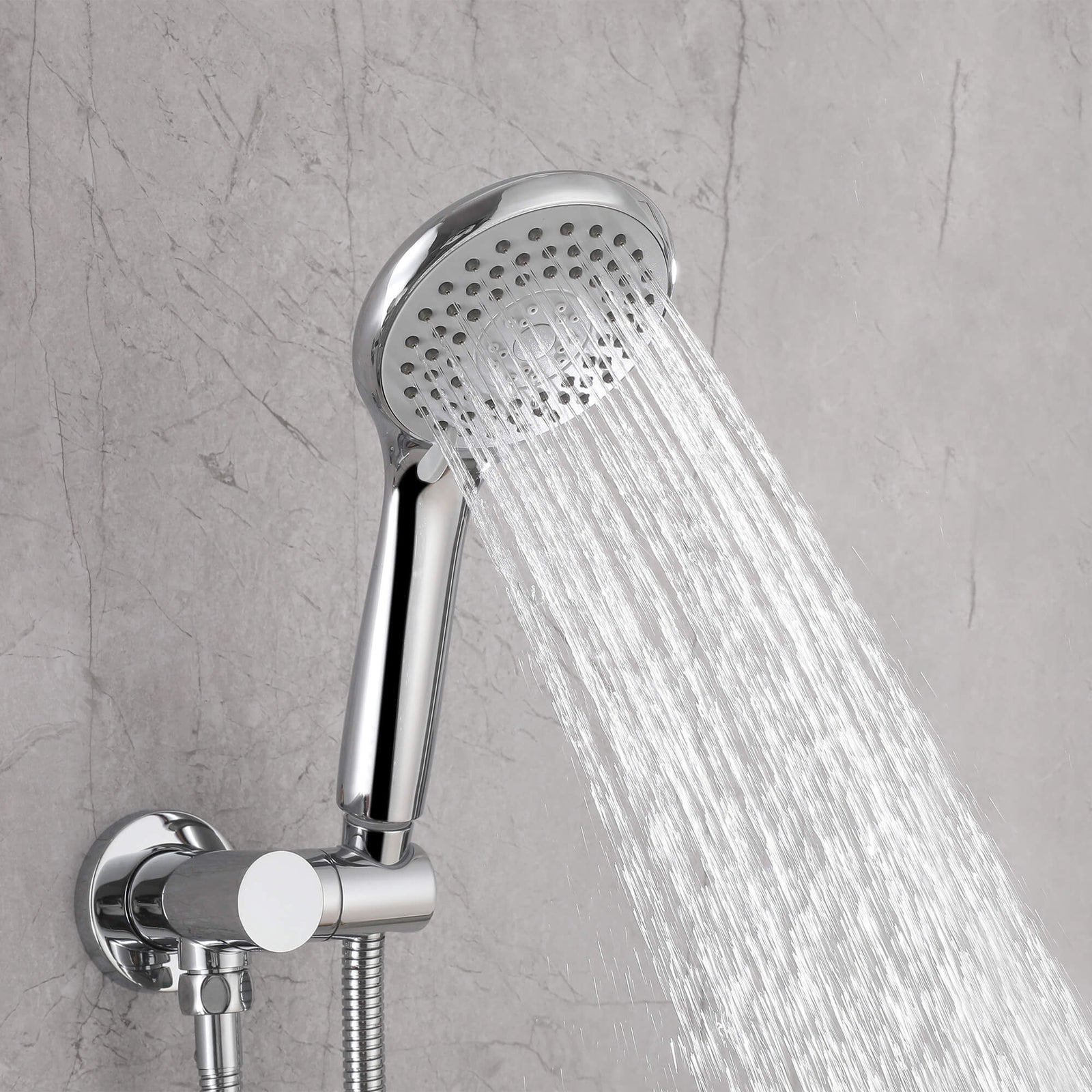

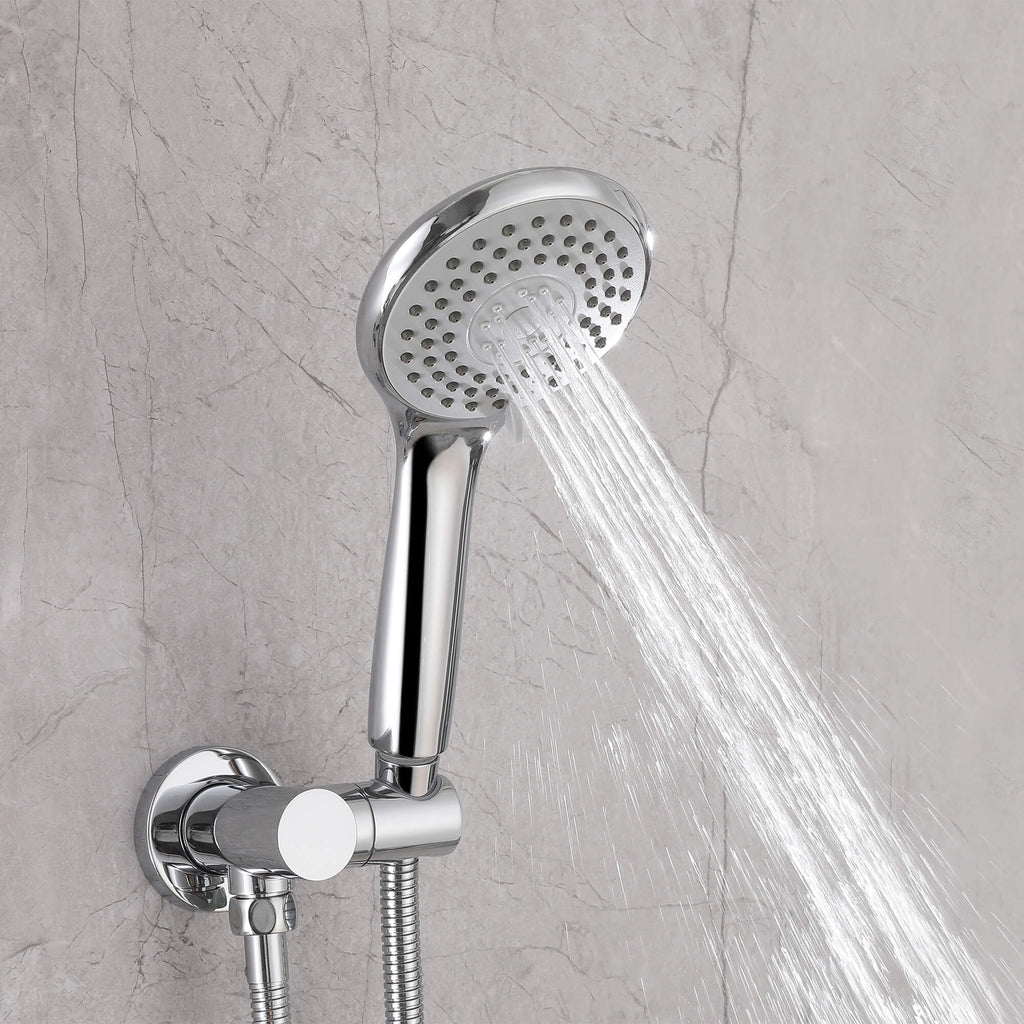

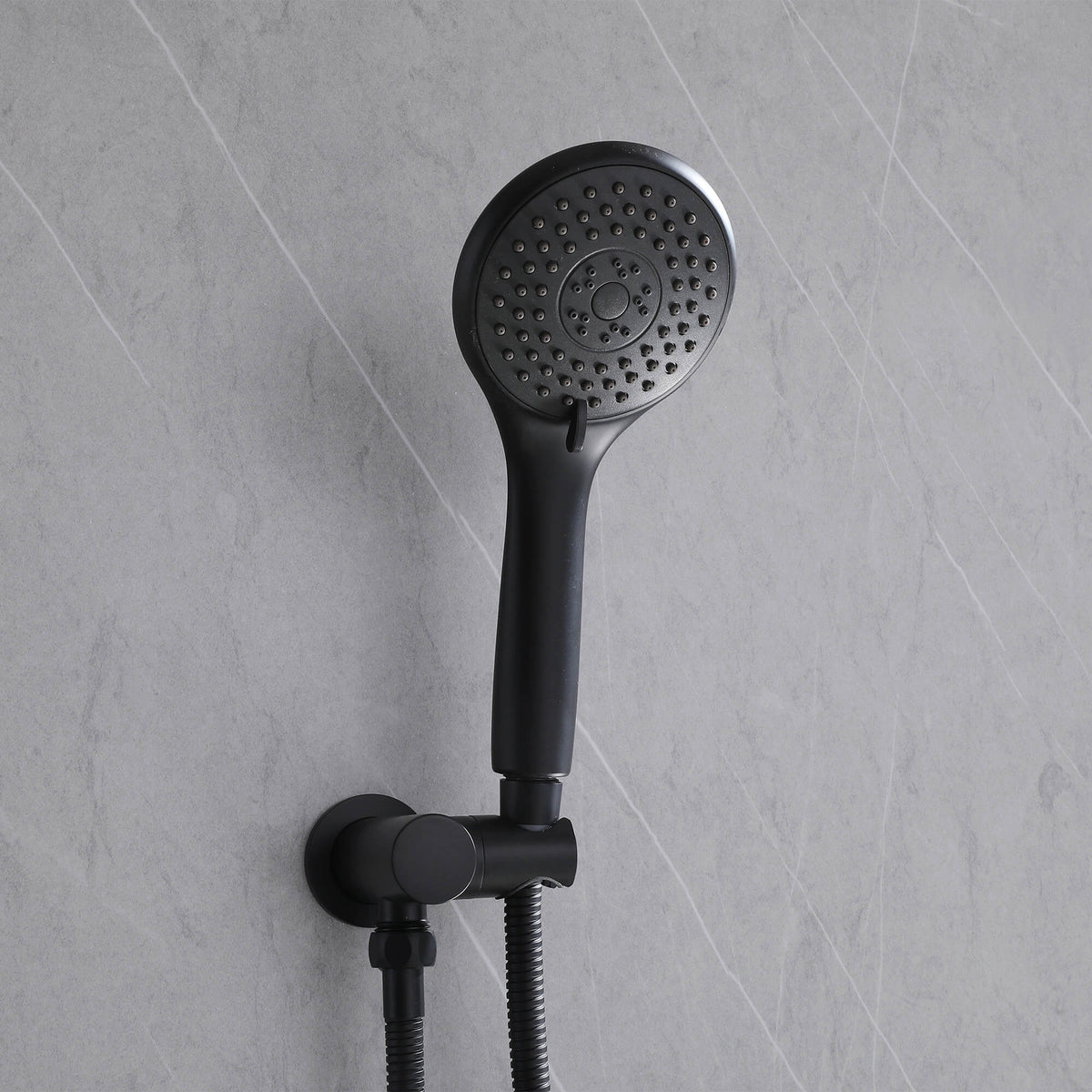

• 3-Function Anti-Scald Handheld Wand Assembly
  Enjoy multi-spray adaptability right in the palm of your hand; easily click between distinct Rain, Spray, and Combination modes via an insulated ABS body that prevents the handle from overheating.


• Rub-Clean Anti-Clog Touch-Clean Silicone Nozzles
  Strip away hard water calcification and stubborn scale accumulations instantly with a simple rub of your thumb across the soft, resilient medical-grade silicone spray nubs.

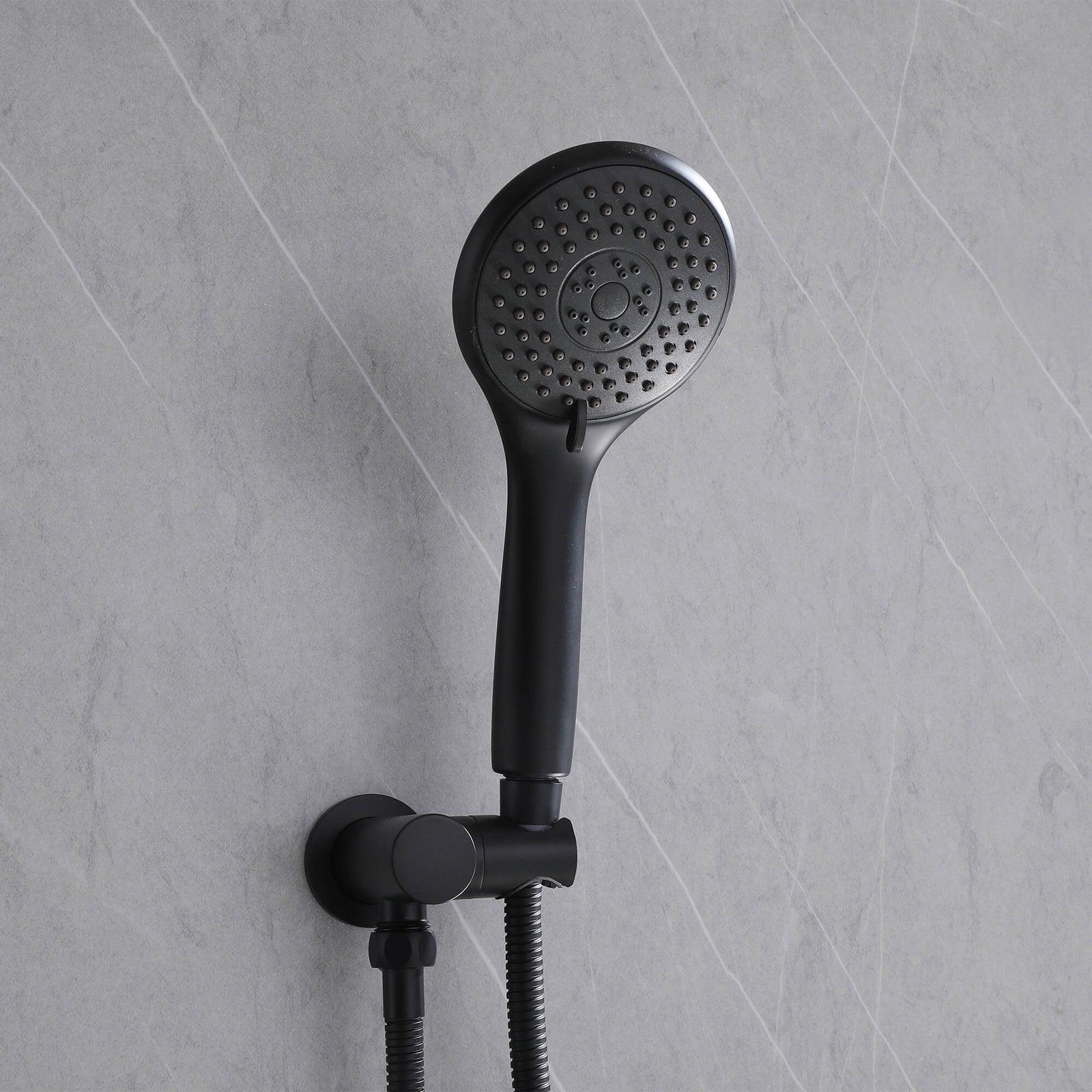

• Angle-Adjustable Handheld Bracket Mount
  Secure your handheld wand firmly with an adjustable swivel joint ABS holder designed to easily customize the wand’s resting spray angle.


• 59-Inch Anti-Explosion Double-Interlock Metal Hose
  Reach every corner of your tile enclosure with an extended stainless steel shower hose featuring a flexible double-groove interlock weave that inherently resists kinking and line twisting.


• Authentic Swiss Neoperl 1.8 GPM Regulation
  Secure immediate entry into eco-conscious markets with authentic Swiss Neoperl flow-limiting inserts that regulate water discharge to a precise, conservation-compliant 1.8 GPM while maintaining a powerful, oxygen-rich skin feel.

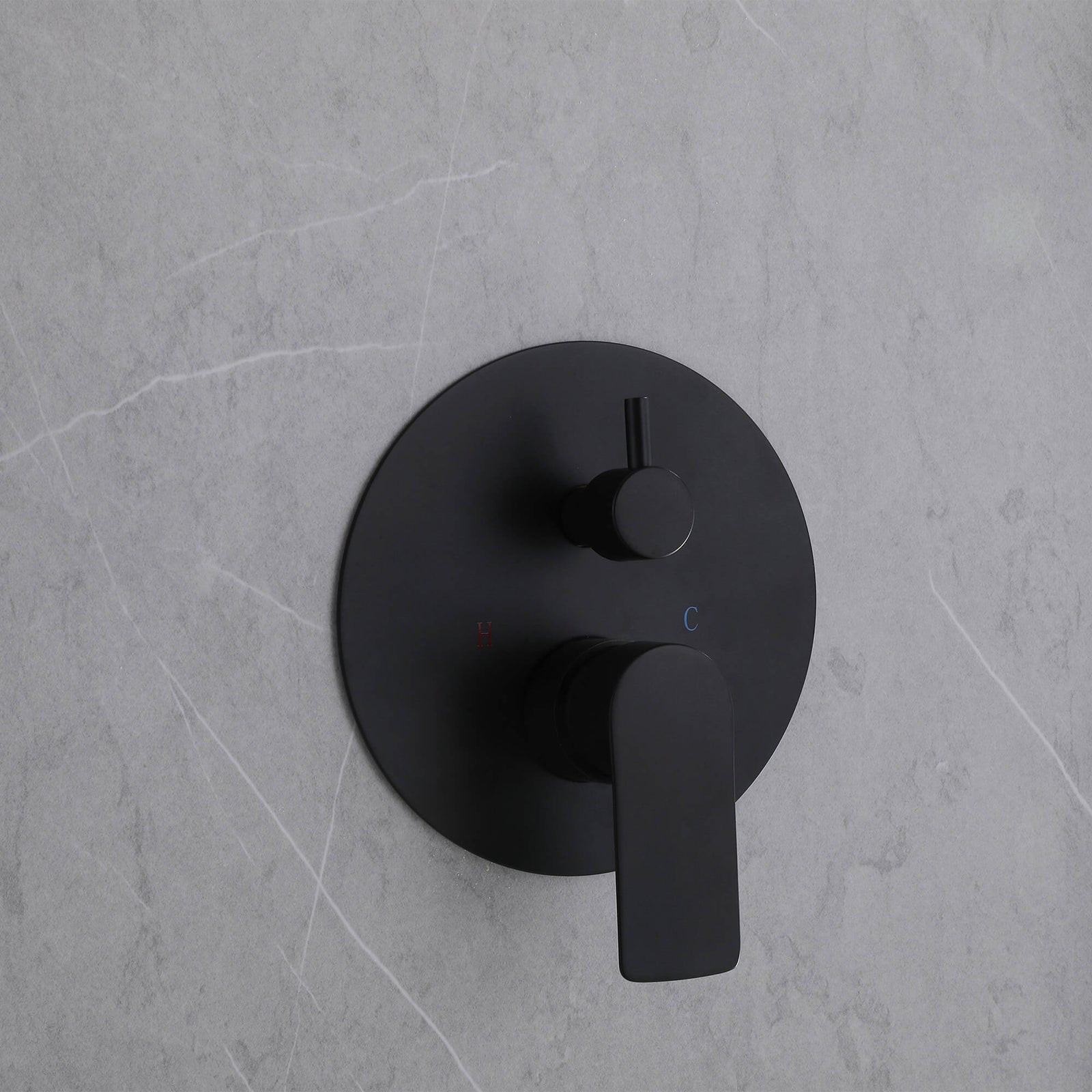

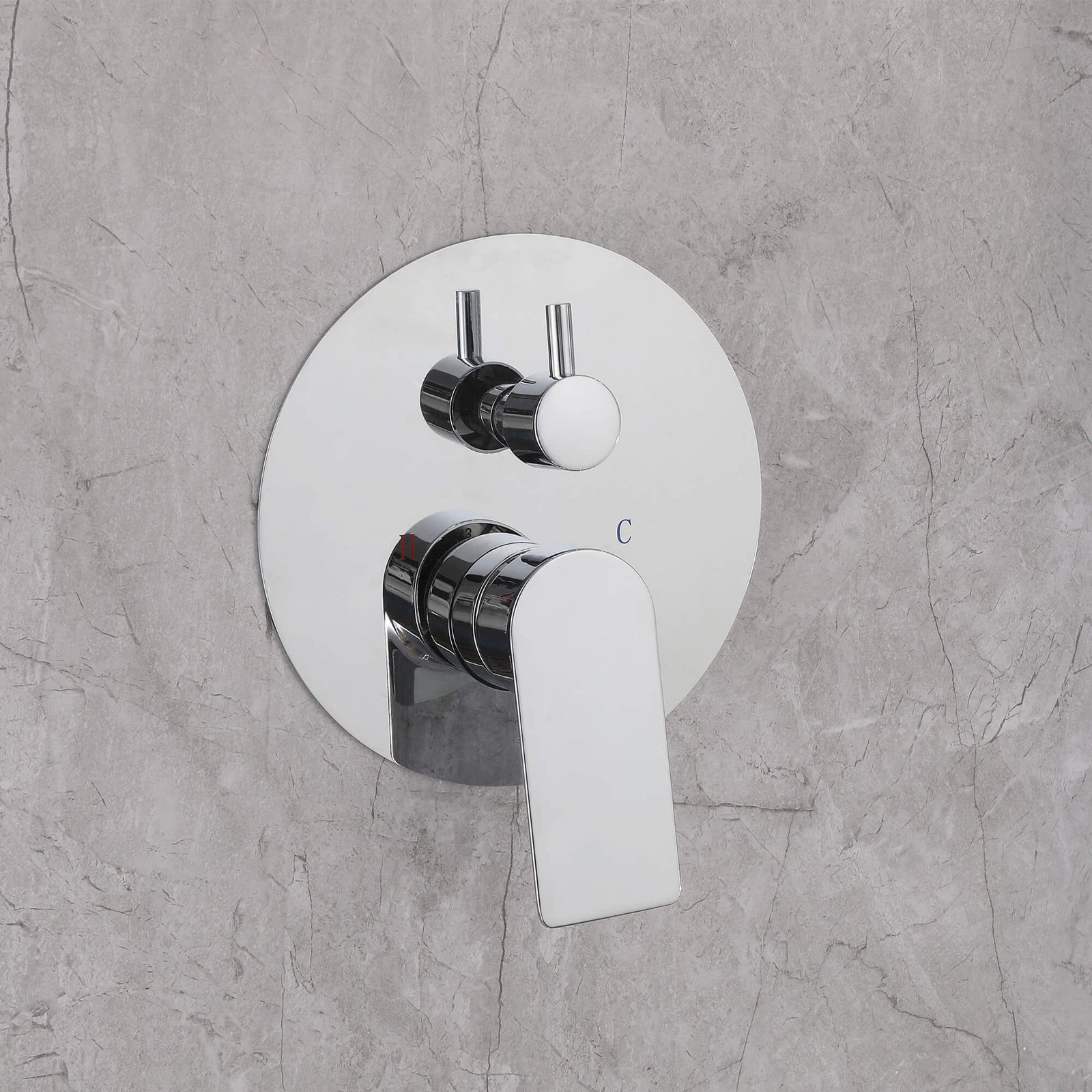

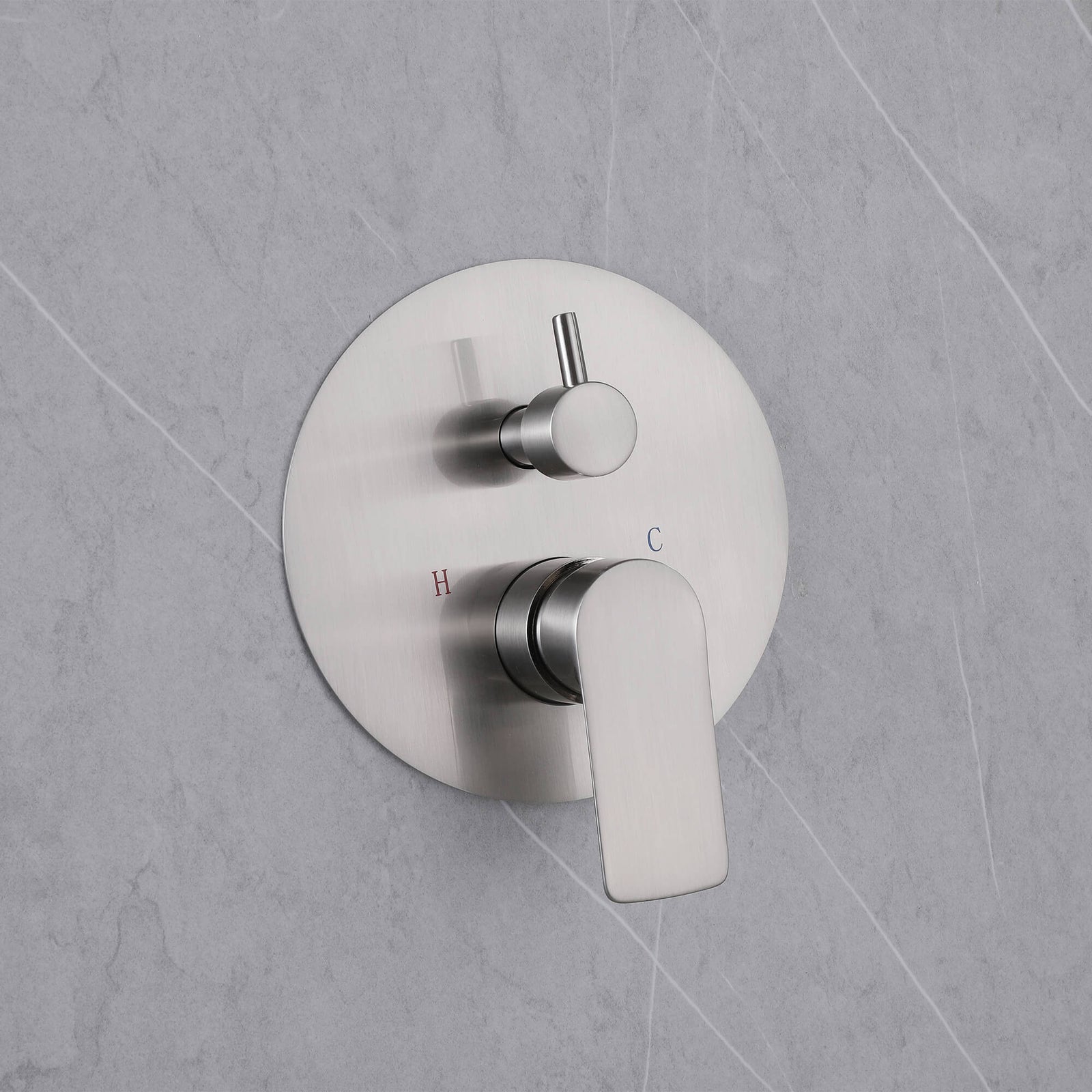

• Streamlined 6.8-Inch Stamped Stainless Trim Plate
  Frame your control station flawlessly with a flush, low-profile decorative faceplate that neatly hides rough-in wall cavities, detailed with a heavy zinc alloy single-lever handle and micro-rotary diverter dial.


• Unified North American cUPC Certification
  Gain full legal and functional compliance across municipal jurisdictions with an advanced pressure-balanced cartridge tested to survive 70,000 flawless on/off cycles.


• Complete Suite Architectural Design Finishes
  Coordinate your layout perfectly across four premium decor colors designed for high-end modern, minimalist, and transitional spaces: Brushed Gold, Matte Black, Polished Chrome, and Brushed Nickel.
